Two Color Inejction Molding Machine 5 Tons With 459 Grams Shot Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | / |
| Packaging Details: | Export Standard |
| Delivery Time: | 25-60 days |
| Payment Terms: | TT, L/C |
| Supply Ability: | 500sets/month |
|
Detail Information |
|||
| Shot Weight: | 459grams | Machine Weight: | 5tons |
|---|---|---|---|
| Machine Dimension: | 5.1*1.7*1.8M | Space Between The Tie Bar: | 460*460MM |
| Mold Height: | 180-500mm | ||
| High Light: | horizontal injection molding machine,plastic products making machine |
||
Product Description

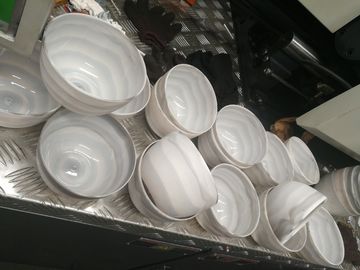

two color pastic bowl inejction mold and two color inejction molding machine
HJF-180 injection molding machine
Adjustment Unit
Automatic mold height adjustment saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
component list
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
Main technical parameters
| SPECIFICATION | HJF-180 | ||
| I | II | ||
| Screw diameter | mm | 45 | 38 |
| Shot size(theoretical) | cm³ | I+II=510 | |
| Injection weight(PS) | g | I+II=459 | |
| Injection pressure | Mpa | 170 | 175 |
| Screw speed | rgm | 2-200 | 2-150 |
| Clamp tonnage | KN | 1800 | |
| Opening stroke | mm | 420 | |
| Space between the tie bars | mm | 460*460 | |
| Mold height | mm | 180-500 | |
| Ejector stroke | mm | 130 | |
| Max.pump pressure | Mpa | 14 | |
| Pump motor power | KW | 15 | |
| Heater power | KW | 13 | |
| Machine dimension(L*W*H) | M | 5.1*1.7*1.8 | |
| Machine weight | T | 5 | |
Characteristics
1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.
Shipping and Payment
| Product Name | mixed two color Injection molding machine |
| Packing | Export standard package |
| MOQ | 1 set |
| FOB price | Please contact for new price |
| Delivery time | 25-60days |
| FOB port | Ningbo |
| Payment terms | T/T,L/C at sight |
