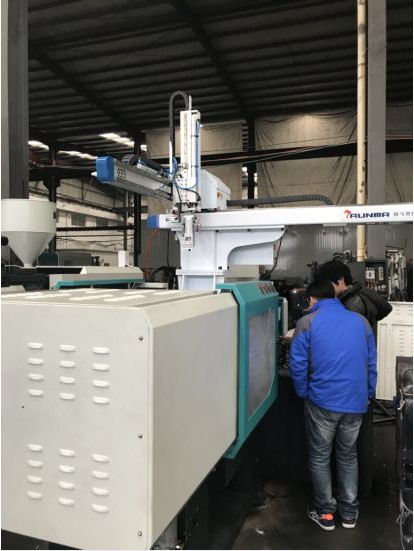

• HJF 200 Ton Auto Injection Molding Machine High Response Horizontal Standard
HJF 200 Ton Auto Injection Molding Machine High Response Horizontal Standard

HJF 200 Ton Auto Injection Molding Machine High Response Horizontal Standard

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 314~470 Injection Rate: 136~185
Clamp Tonnage: 2000 Toggle Stroke: 450
Space Between Tie Bar: 500*470 Machine Dimension: 5.3*1.4*1.9m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

                                     HJF200 ton injection molding machine



Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance






Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.



SPECIFICATION HJF200
Screw Type A B C
Screw Diameter Mm 45 50 55
Screw L/D Ration L/D 20 18.8 18.8
Shot Size(Theoretical) cm3 349 431 522
Injection Weight(PS) g 314 388 470
Injection Rate g/s 136 170 185
Injection Pressure MPa 220 180 150
Screw Speed rpm 0~185
Clamping Force KN 2000
Opening stroke Mm 450
Space Between Tie Bars mm 500*470
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector Stroke mm 130
Ejector Tonnage KN 45
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 7.5
Machine Dimension(L*W*H) M 5.3*1.4*1.9
Machine weight T 5.8
Oil Tank Capacity L 240



Haijiang Machinery Main configuration



Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)



Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)





Haijiang Injection Molding Machinery
