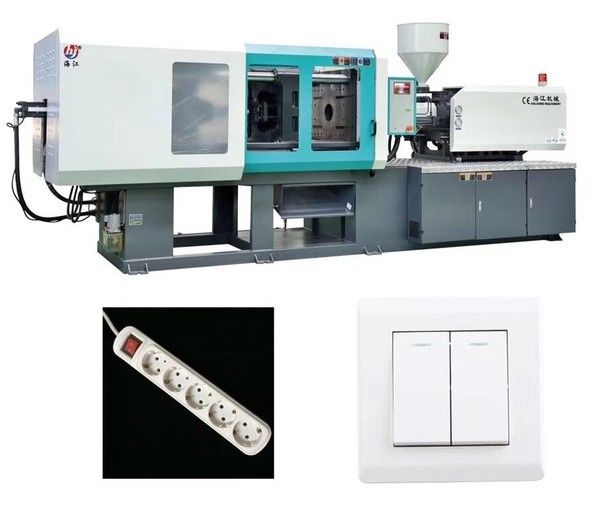

Energy Saving Servo Motor Injection Molding Machine / Socket Switch Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF580 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD$70,200/setSET |
| Packaging Details: | Export standard |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
|
Detail Information |
|||
| Injection Weight: | 1989~2800 | Injection Rate: | 430~602 |
|---|---|---|---|
| Clamp Tonnage: | 5800 | Toggle Stroke: | 850 |
| Space Between Tie Bar: | 850 | Machine Dimension: | 8.7*2.10*2.76 |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine,hydraulic plastic injection moulding machine |
||
Product Description
Injection Molding Machine HJF580
HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price
Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
| SPECIFICATION | HJF580 | ||||
| Screw Type | A | B | C | D | |
| Screw Diameter | Mm | 80 | 85 | 90 | 95 |
| Screw L/D Ration | L/D | 22 | 20.9 | 19.8 | 18.6 |
| Shot Size(Theoretical) | cm3 | 2210 | 2495 | 2797 | 3117 |
| Injection Weight(PS) | g | 1989 | 2245 | 2517 | 2800 |
| Injection Rate | g/s | 430 | 495 | 550 | 602 |
| Injection Pressure | MPa | 195 | 180 | 160 | 148 |
| Screw Speed | rpm | 150 | |||
| Clamping Force | KN | 5800 | |||
| Opening stroke | Mm | 850 | |||
| Space Between Tie Bars | mm | 850*820 | |||
| Max.Mold Height | mm | 850 | |||
| Min.Mold Height | mm | 330 | |||
| Ejector Stroke | mm | 230 | |||
| Ejector Tonnage | KN | 175 | |||
| Max.Pump Pressure | MPa | 16 | |||
| Pump Motor Power | KW | 55 | |||
| Heater power | KW | 34 | |||
| Machine Dimension(L*W*H) | M | 8.7*2.10*2.76 | |||
| Machine weight | T | 21.5 | |||
| Oil Tank Capacity | L | 900 | |||
Haijiang Machinery Main configuration
Standard machinery
| PLC | TECHMATION (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | Schneider(France) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA)/Schneider(France) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
