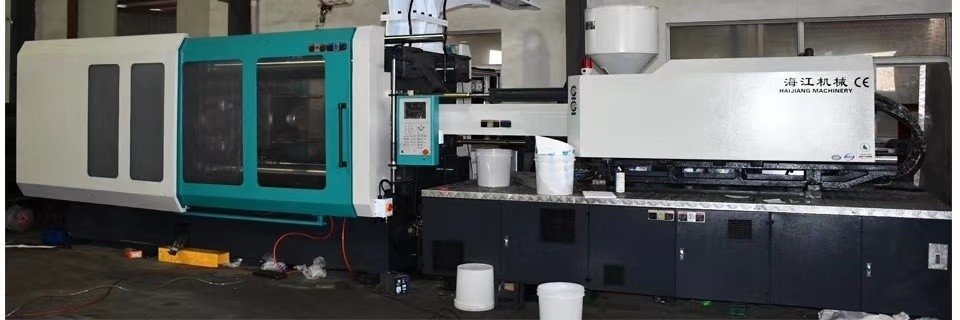

1000 Ton Big Energy Saving Auto Injection Molding Machine With Intellectual Control Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export Standard |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3sets/month |
|
Detail Information |
|||
| Injection Weight: | 3251~5629 | Clamp Tonnage: | 10000 |
|---|---|---|---|
| Toggle Stroke: | 1100 | Space Between Tie Bars: | 1120*1020 |
| Machine Dimension: | 12*2.8*3.14 | Machine Weight: | 45 |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine,hydraulic plastic injection moulding machine |
||
Product Description
injection molding machine with servo
Plastic injection moulding machine
Electro-hydraulic system:
Servo motor, energy saving 30%-70%
High response, high speed, high precision, high stability, repetition,
Reliable injection moulding machine with servo motor, equiped with servo motor, closed loop control for pressure and flow. Low noise, high precision and energy saving. Clamp force ranges from 680KN to 16800KN. Injection weight ranges from 63G to 10000g.
Servo Controller Part:
1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJ series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency
5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving
HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price
| SPECIFICATION | HJF-1000 | |||||||
| A | B | C |
D
|
|||||
| Screw diameter | mm | 95 | 105 | 115 | 125 | |||
| Screw L/D Ratio | L/D | 23 | 22 | 20 | 18.6 | |||
| Shot size(theoretical) | cm³ | 3613 | 4413 | 5294 | 6255 | |||
| Injection weight(PS) | g | 3251 | 3972 | 4765 | 5629 | |||
| Injection pressure | Mpa | 210 | 162 | 133 | 120 | |||
| Injection rate | g/s | 580 | 708 | 850 | 930 | |||
| Screw Speed | rpm | 115 | ||||||
| Clamp tonnage | KN | 10000 | ||||||
| Opening stroke | mm | 1100 | ||||||
| Space between the tie bars | mm | 1120*1120 | ||||||
| Max.Mold Height | mm | 1100 | ||||||
| Min.Mold Height | mm | 500 | ||||||
| Ejector stroke | mm | 350 | ||||||
| Ejector tonnage | KN | 200 | ||||||
| Max.pump pressure | Mpa | 16 | ||||||
| Pump motor power | KW | 45+45 | ||||||
| Heater power | KW | 58 | ||||||
| Machine dimension(L*W*H) | M | 12*2.8*3.14 | ||||||
| Machine weight | T | 45 | ||||||
| Oil tank capacity | L | 1800 | ||||||
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
