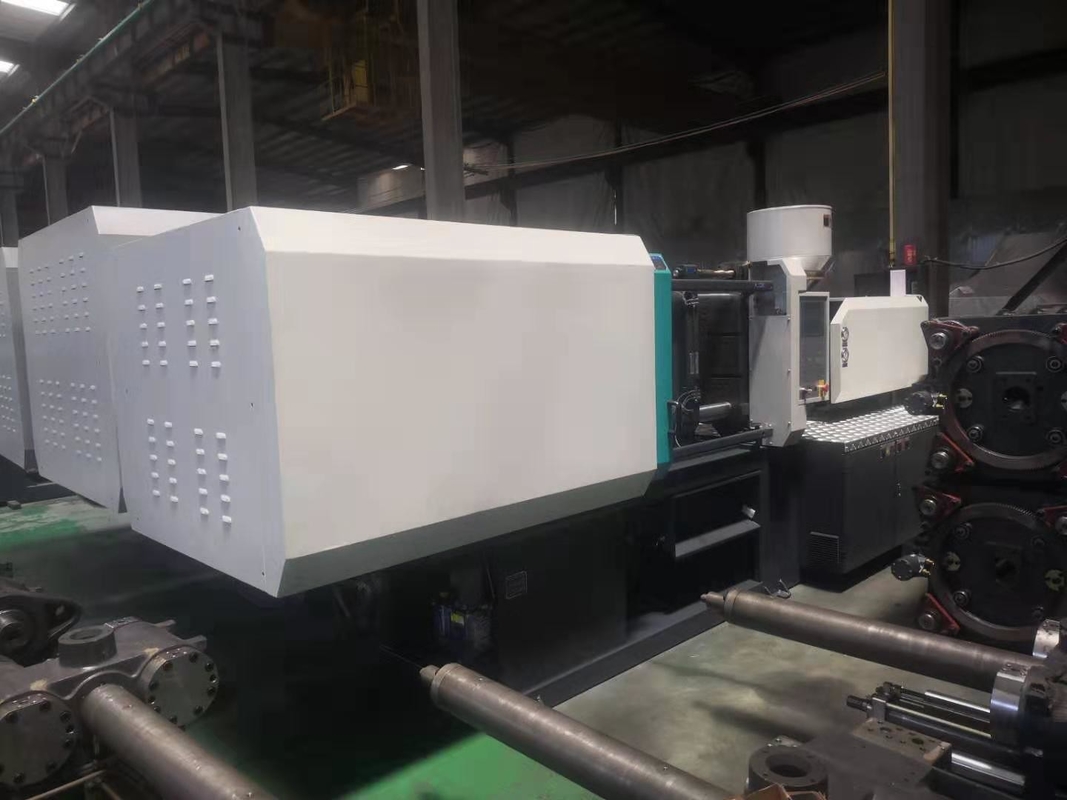

• Low Consumption 200 Ton Servo Injection Plastic Molding Machine High Precision
Low Consumption 200 Ton Servo Injection Plastic Molding Machine High Precision

Low Consumption 200 Ton Servo Injection Plastic Molding Machine High Precision

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 314~470 Injection Rate: 136~185
Clamp Tonnage: 2000 Toggle Stroke: 450
Space Between Tie Bar: 500*470 Machine Dimension: 5.3*1.4*1.9m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

                                     HJF200 ton injection molding machine

Servo series Low consumption and environment-friendly:
1). Economizing on electricity: Electric motor energy is carried out according to need. For high-precision products with long holding time and thick wall thickness, energy electricity can be economized 25%-80%.
2). Precision: Products re-precision is once higher than usual injection molding machine.
3). Control: Double closed circular control makes the pressure and speed equaler.
4). Economizing on water: The cooling water can be economized greatly when the surrounding temperature is below 30 degrees.
5). Low noise: The noise is very low during the non-high-pressure situation.


Advantages:

Control part:
1.It adopts imported computer for plastic injection machine , with large screen .High definiyion crystal display and human-computer interface in different languages.Through CPU independent control and individual treatment.It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.

2.Closed loop temperature control system to ensure the accuracy and reliability of the barrel temperature .The functions of cold proof boot, alarming and parameter memory for the molding, with password protection.The injection and switch are controlled by imported ruler.

Injection part:
1.The excellent chrome , molybdenum and aluminum alloy screw and barrel have undergone the nitrilizing process, applicable to various plastic materials.

2.The injection cylinder(258T advanced) is parallel or balance for both sides of the barrel, so as to ensure the non-deviation of thr nozzle, good sealing and non-leadage.It is equipped with double guide pillar supporting system which can inject under multifarious pressure at various speeds.It also uses one-stop hydraulic pre-injection device.


Hydralic part:
It adopts the imported top quality hydraulic components, proportional control for pressure and flow.

Mouding-adjusment part:
Mold is adjusted by gear controlled by oil motor , the mold can be adjusted automatically in accordance with the setting pressure , which is both convenient and reliable.

SPECIFICATIONHJF200
Screw TypeABC
Screw DiameterMm455055
Screw L/D RationL/D2018.818.8
Shot Size(Theoretical)cm3349431522
Injection Weight(PS)g314388470
Injection Rateg/s136170185
Injection PressureMPa220180150
Screw Speedrpm0~185
Clamping ForceKN2000
Opening strokeMm450
Space Between Tie Barsmm500*470
Max.Mold Heightmm500
Min.Mold Heightmm180
Ejector Strokemm130
Ejector TonnageKN45
Max.Pump PressureMPa16
Pump Motor PowerKW18.5
Heater powerKW7.5
Machine Dimension(L*W*H)M5.3*1.4*1.9
Machine weightT5.8
Oil Tank CapacityL240


Haijiang Machinery Main configuration

Standard machinery

PLCPORCHESON (TAIWAN)
Vane PumpAlbert (USA)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional ValveHNC (TAIWAN)
Electric MotorQianlima (CHINA )
ContactorLS (KOREA)
Plasticizing Oil MotorSTF(CHINA)
Air BreakerLS (KOREA)
Thermal Overload RelayLS (KOREA)
Limit SwitchesOmoron (JAPAN )
Liner Position Sensors (Electric Ruler)Minor (China)
Lubrication PumpChaoRun(China)


Servo machinery

PLCPORCHESON (TAIWAN)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air BreakerLS (KOREA)
SSR(solid state relay)Fotek(TAIWAN)
Plasticizing Oil MotorSTF(China)
Limit SwitchesOmoron (JAPAN )
Gear PumpSUMITOMO (JAPAN)
Servo DriverDELTA (TAIWAN)
Servo SensorASHCROFT(GERMAN)
Servo MotorAlbert(USA)/Phase(ITALY)



Haijiang Injection Molding Machinery
