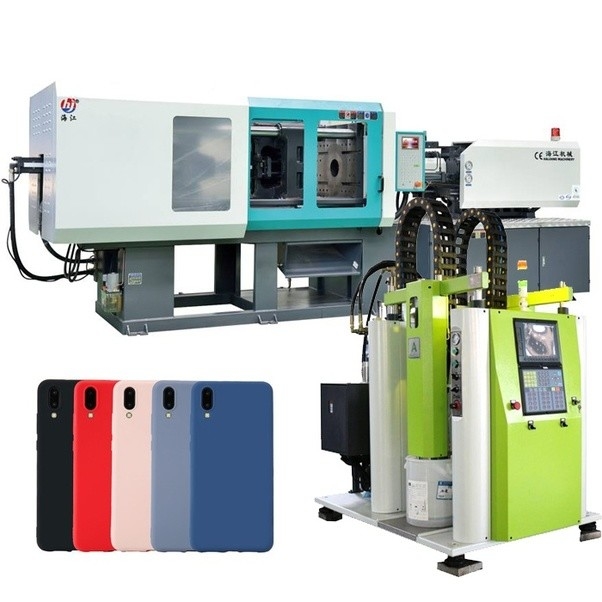

• Phone Case Making Servo Energy Saving Injection Molding Machine Closed Loop Control
Phone Case Making Servo Energy Saving Injection Molding Machine Closed Loop Control

Phone Case Making Servo Energy Saving Injection Molding Machine Closed Loop Control

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$20,000/setSET
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 274~388 Inhection Rate: 108~158
Clamp Tonnage: 1800 Toggle Stroke: 430
Space Between Tie Bar: 470*470 Machine Dimension: 5.1*1.4*1.9
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

                                                 180 ton servo injection molding machine
Energy saving plastic injection molding machine price
Features of injection molding machine:
1.Equiped with servo motor ,
2.Closed loop control for pressure and flow .
3.Low noise,
4.High precision
5.Energy saving .

Control part:
1.It adopts imported computer for plastic injection machine , with large screen .High definiyion crystal display and human-computer interface in different languages.Through CPU independent control and individual treatment.It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.

2.Closed loop temperature control system to ensure the accuracy and reliability of the barrel temperature .The functions of cold proof boot, alarming and parameter memory for the molding, with password protection.The injection and switch are controlled by imported ruler.



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.


SPECIFICATIONHJF180
Screw TypeABC
Screw DiameterMm424550
Screw L/D RationL/D22.52018.8
Shot Size(Theoretical)cm3304349431
Injection Weight(PS)g274314388
Injection Rateg/s108128158
Injection PressureMPa202159140
Screw Speedrpm0~185
Clamping ForceKN1800
Opening strokeMm450
Space Between Tie Barsmm480*480
Max.Mold Heightmm500
Min.Mold Heightmm180
Ejector Strokemm130
Ejector TonnageKN45
Max.Pump PressureMPa16
Pump Motor PowerKW15
Heater powerKW7.5
Machine Dimension(L*W*H)M5.1*1.4*1.9
Machine weightT5.5
Oil Tank CapacityL240


Haijiang Machinery Main configuration

Standard machinery

PLCPORCHESON (TAIWAN)
Vane PumpAlbert (USA)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional ValveHNC (TAIWAN)
Electric MotorQianlima (CHINA )
ContactorLS (KOREA)
Plasticizing Oil MotorSTF(CHINA)
Air BreakerLS (KOREA)
Thermal Overload RelayLS (KOREA)
Limit SwitchesOmoron (JAPAN )
Liner Position Sensors (Electric Ruler)Minor (China)
Lubrication PumpChaoRun(China)


Servo machinery

PLCPORCHESON (TAIWAN)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air BreakerLS (KOREA)
SSR(solid state relay)Fotek(TAIWAN)
Plasticizing Oil MotorSTF(China)
Limit SwitchesOmoron (JAPAN )
Gear PumpSUMITOMO (JAPAN)
Servo DriverDELTA (TAIWAN)
Servo SensorASHCROFT(GERMAN)
Servo MotorAlbert(USA)/Phase(ITALY)
