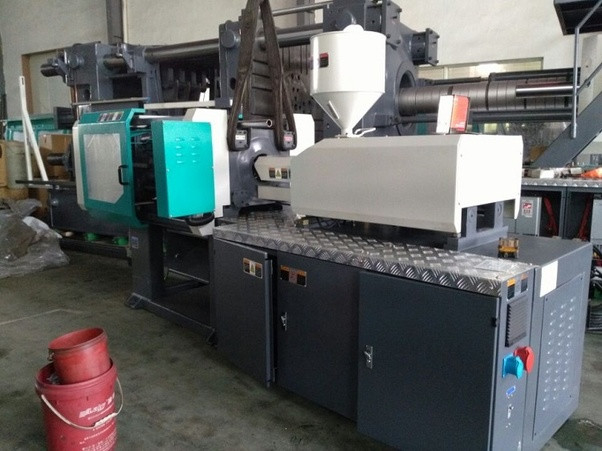

• Automatic Servo Plastic Injection Molding Machine Energy Saving 118 Tons
Automatic Servo Plastic Injection Molding Machine Energy Saving 118 Tons

Automatic Servo Plastic Injection Molding Machine Energy Saving 118 Tons

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF118

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 300sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 141~183 Clamp Tonnage: 1180
Toggle Stroke: 340 Space Between Tie Bars: 370*370
Machine Dimension: 4.2*1.25*1.8 Pump Motor Power: 11KW
Machine Weight: 3.5tons
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

Automatic Servo Plastic Injection Molding Machine Energy Saving 118 Tons

Haijiang Energy Saving 118 Tons Automatic servo Plastic Injection Molding Machine



Quick Detail:



Industrial Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S.etc.This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.Competitive advantages:



Characteristics

1. Adopts the imported control components, durable, safe, and low failure rate.

2. Use human-computer interface, simple and more visually oriented.

3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.

4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.

5. Low power consumption, simple and convenient operation, low noise.

6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.



+injection Units

High injection pressure , High injection speed

+HYDRAULIC SYSTEM

Fast respone, stable output

+Electronic Units

intelligent control unit



Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.



SPECIFICATION HJF118
Screw Type A B C
Screw Diameter Mm 35 38 40
Screw L/D Ration L/D 23.9 22 20.9
Shot Size(Theoretical) cm3 154 181 201
Injection Weight(PS) g 141 165 183
Injection Rate g/s 80 95 105
Injection Pressure MPa 219 186 167
Screw Speed rpm 0~220
Clamping Force KN 1180
Opening stroke mm 340
Space Between Tie Bars mm 370*370
Max.Mold Height mm 400
Min.Mold Height mm 150
Ejector Stroke mm 100
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 11
Heater power KW 6.5
Machine Dimension(L*W*H) M 4.2*1.25*1.8
Machine weight T 3.5
Oil Tank Capacity L 210



Haijiang Machinery Main configuration



Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)



Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)



SPARE PARTS( FOR FREE)

1. Mold clamping with bolts: 8PCS, 2. Nozzles: 1PCS,
3. Toolbox: 1SET, 4. Heating Band: 2PCS,
5. Lubrication Oil: 1 Bucket 6. Limit Switch: 2PCS,
7. Hexagon Wrench: 1SET, 8. Thermocouple: 2PCS
9. Seal Ring: 2PCS, 10. Machine shockproof pads: 6PCS,
11. Vise: 1PCS, 12. Power socket for auxiliary machines: 2PCS,
13. Wrench: 1PCS, 14. Screwdriver: 2PCS,

Note: Different machines, the quantity of free accessories is different.



Shipping and Payment



Product Name 500 Injection molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 60days
FOB port Ningbo
Payment terms T/T,L/C at sight
