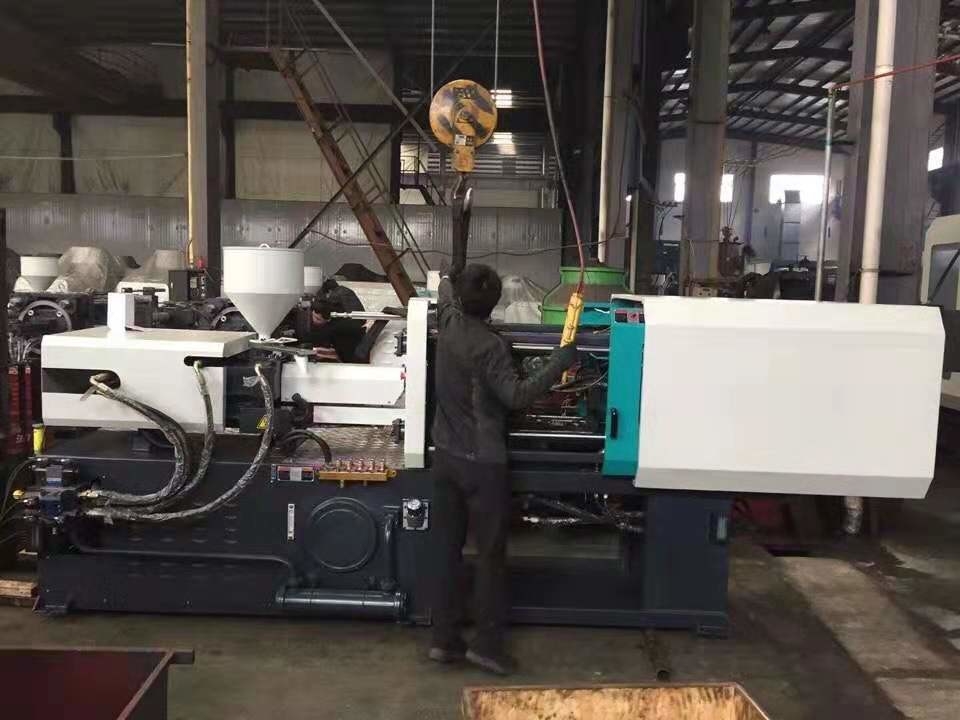

• Horizontal Standard 240 Ton Auto Injection Moulding Machines With Servo Motor
Horizontal Standard 240 Ton Auto Injection Moulding Machines With Servo Motor

Horizontal Standard 240 Ton Auto Injection Moulding Machines With Servo Motor

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF240

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 462~642 Injection Rate: 148202
Clamp Tonnage: 2400 Toggle Stroke: 490
Space Between Tie Bar: 530*510 Machine Dimension: 5.4*1.5*2m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

Horizontal Standard 240 Ton Auto Injection Moulding Machines With Servo Motor

                                    HJF240 servo injection molding machine
HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.



SPECIFICATIONHJF240
Screw TypeABC
Screw DiameterMm505560
Screw L/D RationL/D22.22018.2
Shot Size(Theoretical)cm3508593706
Injection Weight(PS)g462534642
Injection Rateg/s148179202
Injection PressureMPa180160.8128
Screw Speedrpm0~180
Clamping ForceKN2400
Opening strokeMm490
Space Between Tie Barsmm530*510
Max.Mold Heightmm530
Min.Mold Heightmm200
Ejector Strokemm165
Ejector TonnageKN70
Max.Pump PressureMPa16
Pump Motor PowerKW18.5
Heater powerKW11.65
Machine Dimension(L*W*H)M5.4*1.5*2
Machine weightT7
Oil Tank CapacityL340


Haijiang Machinery Main configuration

Standard machinery

PLCPORCHESON (TAIWAN)
Vane PumpAlbert (USA)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional ValveHNC (TAIWAN)
Electric MotorQianlima (CHINA )
ContactorLS (KOREA)
Plasticizing Oil MotorSTF(CHINA)
Air BreakerLS (KOREA)
Thermal Overload RelayLS (KOREA)
Limit SwitchesOmoron (JAPAN )
Liner Position Sensors (Electric Ruler)Minor (China)
Lubrication PumpChaoRun(China)



Servo machinery

PLCPORCHESON (TAIWAN)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air BreakerLS (KOREA)
SSR(solid state relay)Fotek(TAIWAN)
Plasticizing Oil MotorSTF(China)
Limit SwitchesOmoron (JAPAN )
Gear PumpSUMITOMO (JAPAN)
Servo DriverDELTA (TAIWAN)
Servo SensorASHCROFT(GERMAN)
Servo MotorAlbert(USA)/Phase(ITALY)
