Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF580

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 1989~2800 Injection Rate: 430~602
Clamp Tonnage: 5800 Toggle Stroke: 850
Space Between Tie Bar: 850*820 Machine Dimension: 8.7*2.10*2.76m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

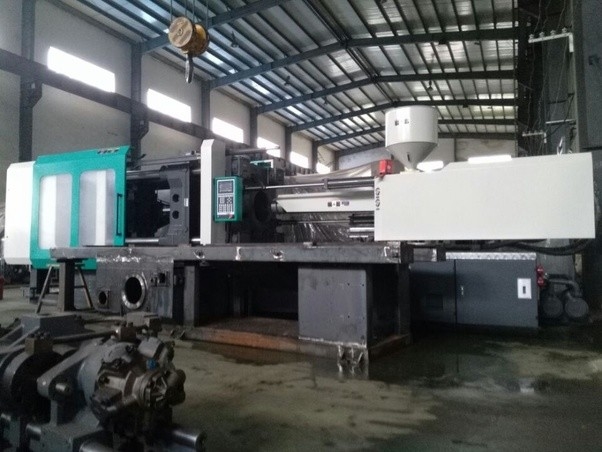

Plastic Bucket Making Machine , High Rigidity 580 Ton Injection Molding Machine

                                               HJF580 injection molding machine

Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Haijiang Injection Molding Machinery



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.



SPECIFICATION HJF580
Screw Type A B C D
Screw Diameter Mm 80 85 90 95
Screw L/D Ration L/D 22 20.9 19.8 18.6
Shot Size(Theoretical) cm3 2210 2495 2797 3117
Injection Weight(PS) g 1989 2245 2517 2800
Injection Rate g/s 430 495 550 602
Injection Pressure MPa 195 180 160 148
Screw Speed rpm 150
Clamping Force KN 5800
Opening stroke Mm 850
Space Between Tie Bars mm 850*820
Max.Mold Height mm 850
Min.Mold Height mm 330
Ejector Stroke mm 230
Ejector Tonnage KN 175
Max.Pump Pressure MPa 16
Pump Motor Power KW 55
Heater power KW 34
Machine Dimension(L*W*H) M 8.7*2.10*2.76
Machine weight T 21.5
Oil Tank Capacity L 900





Haijiang Machinery Main configuration



Standard machinery

PLC TECHMATION (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor Schneider(France)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)/Schneider(France)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)

Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
