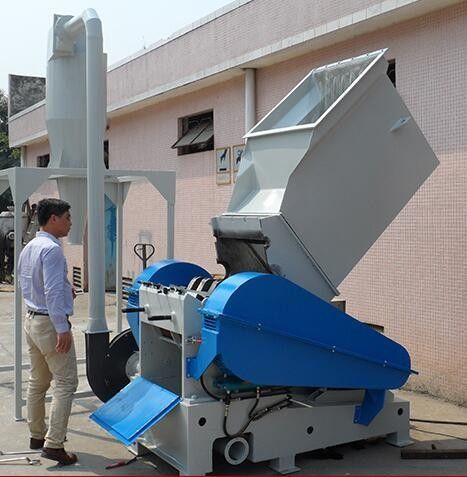

Heavy Duty Plastic Bottle Crushing Machine , Automatic Plastic Scrap Grinder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Sailai |
| Certification: | ISO9001 |
| Model Number: | KG-230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | US$800 |
| Packaging Details: | wooden box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Power: | 4kw | Rotating Blades: | 6 |
|---|---|---|---|
| Quantity Of Blades: | 9pcs | Screem Soze: | 8 |
| Max Breaking Capacity: | 200-300 | ||
| High Light: | plastic grinding machine,plastic bottle crushing machine |
||
Product Description
Heavy Duty Plastic Bottle Crushing Machine , Automatic Plastic Scrap Grinder Machine
Sphere of application: It has a good crushing effort for various hollow thin-walled bottles, thin film, woven bags, nylon and other plastic products. Automatic feeding device and automatic delivery filling system can be additionally mouted, which make the production efficiency high.
Features:
The knife tool is refines with imported special tool-steel,the clearance between knife tools are adjustable,when it becomes blunt by using,it can be dismounted repeatedly,it is durable.
Use high-intensity steel screws to fasten the knife leaf and knife seat,having strong bearing capacity.
All walls of crushing chamber are treated by sound-proof,so having extra-low noise.
A discount-type designed,the bunker,main body,screen can be dismounted for cleaning easily.
The electric motor has over-loading protection with power source interlock protection device.Double-safety protection for operatorsand electric motor.
Step-type motion knife design with strong breaking capacity.
Main Technical Data
| Model | KG180 | KG230 | KG300 | KG400 | KG500 | KG600 | KG800 | KG1000 |
|
Power(kw)
|
2.2
|
4
|
5.5
|
7.5
|
11
|
15
|
22
|
37
|
| Quantity of rotating blades |
9
|
6
|
9
|
12
|
15
|
18
|
24
|
30
|
| Quantity of fixed blades |
2
|
2
|
2
|
2
|
2
|
4
|
4
|
4
|
| Screen size(mm) |
Φ8
|
Φ8
|
Φ10
|
Φ10
|
Φ10
|
Φ12
|
Φ12
|
Φ14
|
|
Weight(kg)
|
240
|
340
|
480
|
660
|
900
|
1400
|
1950
|
2500
|
| Max.breaking capacity(mm) | 100-150 | 150-200 | 200-300 | 400-600 | 500-700 | 600-800 | 700-900 | 800-1000 |
| Size of feeding inlet(mm) | 180×136 | 230×170 | 300×210 | 400×240 | 500×300 | 600×310 | 800×400 | 1000×400 |
| External size(mm) | 730×440 ×900 |
1000×700 ×1050 |
1100×800 ×1200 |
1300×900 ×1400 |
1450×1050 ×1500 |
1500×1250 ×1720 |
2000×1400 ×2100 |
2000×1600 ×2100 |
