Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc

Machine quality is good, i have two small size machine

—— Farrukh Jawaid

I'm Online Chat Now

Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc

China Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc supplier
Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc supplier Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc supplier

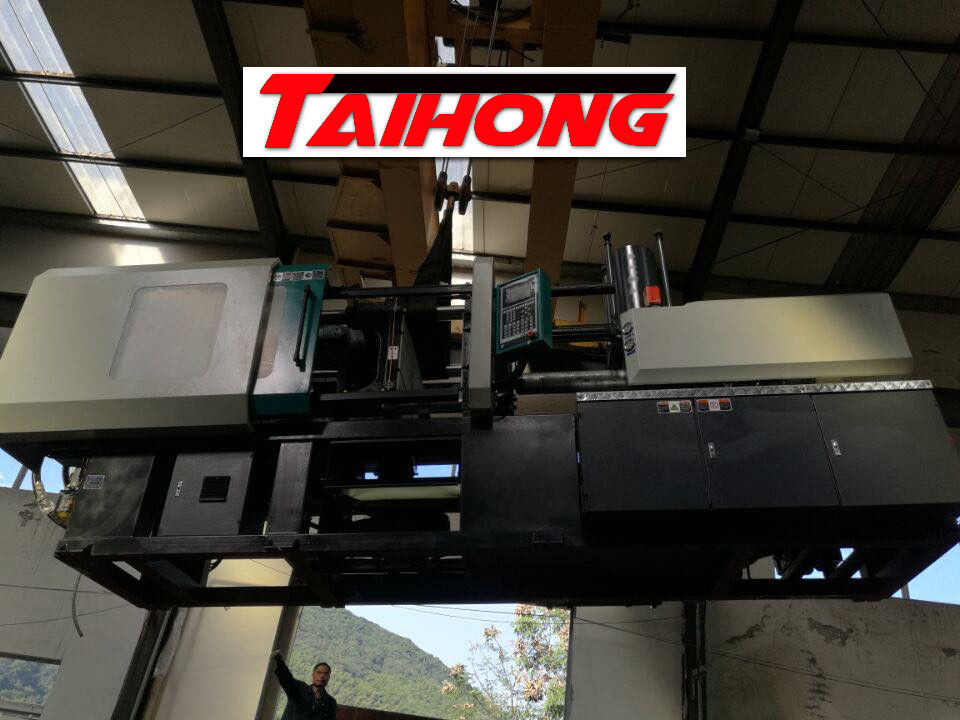

Large Image :  Horizontal Standard Plastic Auto Injection Molding Machine 200 Ton Pp / Pvc

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 300sets/month
Contact Now
Detailed Product Description
Injection Weight: 314~470 Clamp Tonnage: 2000
Toggle Stroke: 450 Space Between Tie Bars: 500*470
Machine Dimension: 5.1*1.4*1.9 Pump Motor Power: 18.5
Machine Weight: 5.8tons

Industrial 200 Tons Automatic Plastic Injection Molding Machine With 11KW Power





Quick Detail:



Industrial Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S.etc.This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.



Competitive advantages:

+injection Units

High injection pressure , High injection speed

+HYDRAULIC SYSTEM

Fast respone, stable output

+Electronic Units

intelligent control unit



Main technical parameters
SPECIFICATION HJ-200U
  A B C
Screw diameter mm 45 50 55
Screw L/D Ratio L/D 20 18.8 18.8
Shot size(theoretical) cm³ 349 431 522
Injection weight(PS) g 314 388 470
Injection pressure Mpa 220 180 150
Injection rate g/s 136 170 185
Screw Speed rpm 0~185
Clamp tonnage KN 2000
Opening stroke mm 450
Space between the tie bars mm 500*470
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector stroke mm 130
Ejector tonnage KN 45
Max.pump pressure Mpa 16
Pump motor power KW 18.5
Heater power KW 7.5
Machine dimension(L*W*H) M 5.3*1.4*1.9
Machine weight T 5.8
Oil tank capacity L 240



Characteristics



1. Adopts the imported control components, durable, safe, and low failure rate.

2. Use human-computer interface, simple and more visually oriented.

3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.

4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.

5. Low power consumption, simple and convenient operation, low noise.

6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.





Shipping and Payment



Product Name 500 Injection molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 60days
FOB port Ningbo
Payment terms T/T,L/C at sight
