Low Power Consumption Pet Preform Injection Molding Machine High Speed

China Low Power Consumption Pet Preform Injection Molding Machine High Speed supplier
Low Power Consumption Pet Preform Injection Molding Machine High Speed supplier Low Power Consumption Pet Preform Injection Molding Machine High Speed supplier

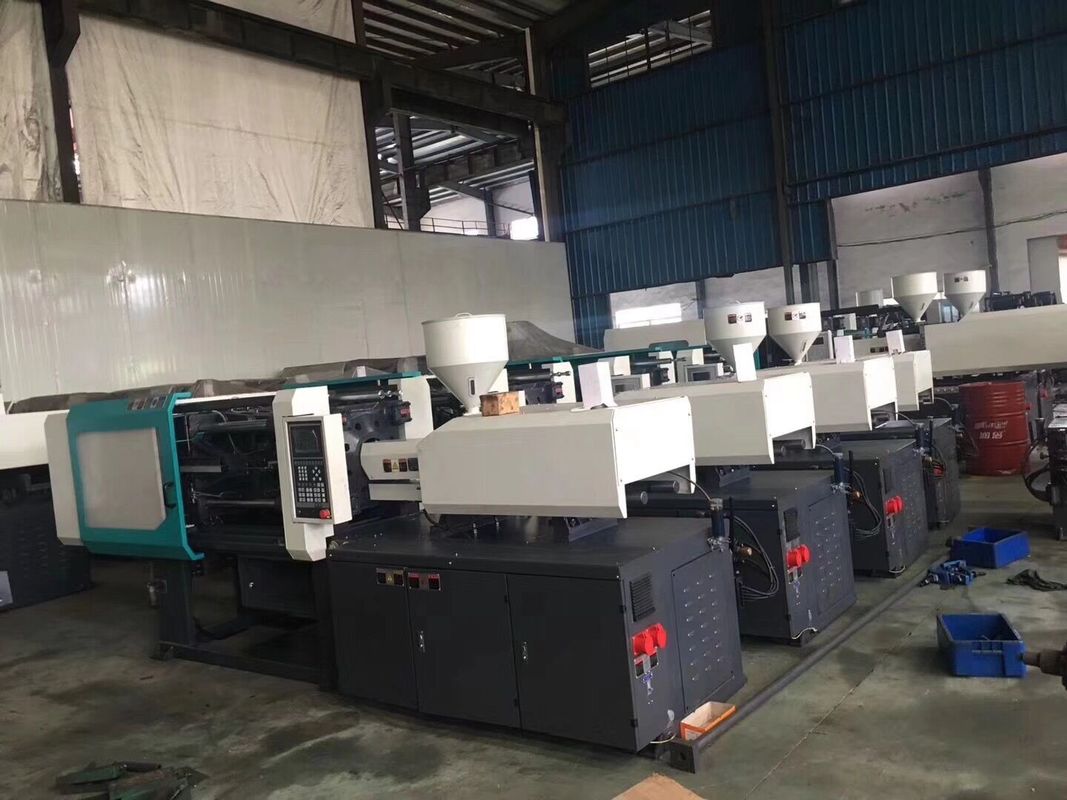

Large Image :  Low Power Consumption Pet Preform Injection Molding Machine High Speed

Product Details:

Place of Origin: China
Brand Name: Haijiang
Certification: ISO9001
Model Number: HJF530

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 20000/set
Packaging Details: Export Standard
Delivery Time: 25 days
Payment Terms: TT
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Product Name: PET Preform Injection Molding Machine Ejector Stroke: 770mm
Motor Power: 45kw Heating Power: 31.4kw
Machine Weight: 20 Tons Machine Dimension: 8.4m*1.92m*2.76m
Screw Diameter: 75-100mm

530 ton High Speed PET Preform Making Machine , Pet Preform Production making line



SPECIFICATION HJF-530
  A B C

D

FPR FRUIT BASKET

Screw diameter mm 75 80 85 100
Screw L/D Ration L/D 22.7 21 20 17.5
Shot size(theoretical) cm³ 1727 1965 2218 2904
Injection weight(PS) g 1560 1788 2018 2614
Injection rate g/s 386 442 499 625
Injection pressure Mpa 191 168 148 115
Screw speed rpm 130
Clamping tonnage KN 5300
Opening stroke mm 770
Space between the tie bars mm 820*800
Max.mold height mm 810
Min.mold height mm 330
Ejector stroke mm 240
Ejector tonnage KN 150
Max.pump pressure Mpa 16
Pump motor power KW 45
Heater power KW 31.4
Machine dimension(L*W*H) M 8.4*1.92*2.76
Machine weight T 20
Oil tank capacity L 900

Main application

This is a new generation packaging machinery which is developed on the basis of introducing and absorbing the advanced technology from America, Japan and Germany. Adopts top quality components like Japanese Mitsubishi PLC, SMC pneumatic components, American Nordson hot melt adhesive, ensures the carton forming, packing, folding, glue spraying, sealing and the following packaging process continuously and automatically finished. With characteristics of reasonable structure, stable performance, reliable quality, high productivity, wide adaptability, and high degree automation. Widely used in instant noodles, cigarettes, liquor, beverage and other cartoon packaging products



Main technical parameters



Product Name  1100 Injection molding machine price
Capacity 10-15 cartoon/min
Table height 800mm
Applicable size (L)300-400×(W)300-450×(H)100-200
Machine size (L)5260×(W)1830×(H)2000
Machine weight 1600KG
Rated power 4KW
Power supply 380V 50HZ
Air supply 150L/min 6Mpa
Hot melt adhesive curing time 2-3 seconds,working temperature: 150-180°C



Characteristics



1. Adopts the imported control components, durable, safe, and low failure rate.

2. Use human-computer interface, simple and more visually oriented.

3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.

4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.

5. Low power consumption, simple and convenient operation, low noise.

6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.



Shipping and Payment



Product Name 270 Injection blow molding machine price
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 60days
FOB port Ningbo
Payment terms T/T,L/C at sight
