    Plastic Products Manufacturing Machine , Plastic Moulder Machine ISO9001 Standard

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: General packaging
    Delivery Time: 45days
    Payment Terms: T/T
    Supply Ability: 10sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 462~642 Clamp Tonnage: 2400
    Toggle Stroke: 490 Space Between Tie Bars: 530*510
    Machine Dimension: 5.4*1.5*2 Machine Weight: 7
    High Light:

    hydraulic plastic injection moulding machine

    ,

    pvc pipe fitting injection molding machine

    Product Description

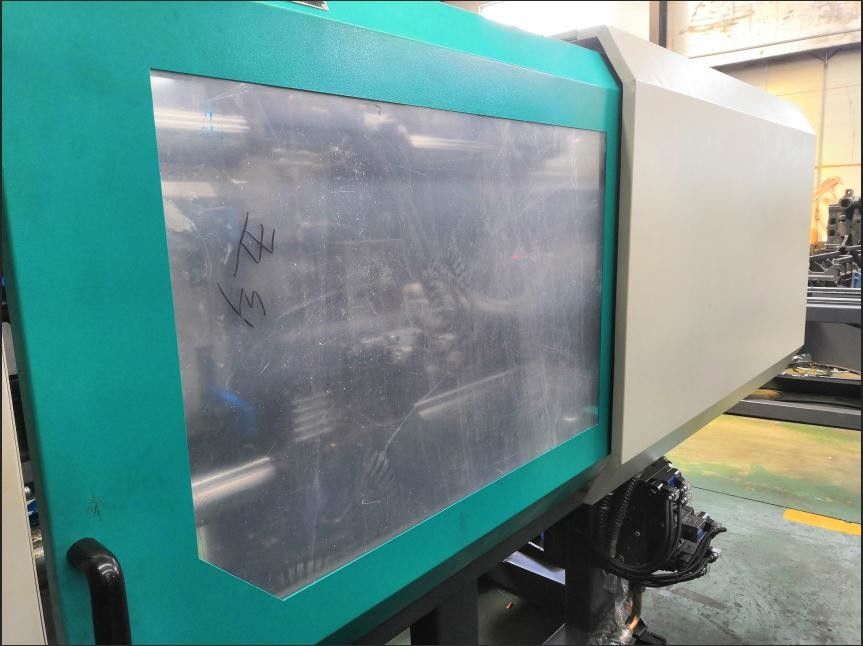

    Plastic Products Manufacturing Machine , Plastic Moulder Machine ISO9001 Standard

                                            HJ-240U injection molding machine

    Adjustment Unit

    Automatic mold height adjustment saves the time and cost during the mold changing.



    Clamping Unit

    The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.



    Hydraulic Unit

    The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.



    Injection Unit

    Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.



    Electronically Controlled Unit

    1. CPU controller and display are independent and reliable.

    2. A larger color LCD screen enhances clear display and support multi-language compatibility.

    3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

    4. A screen saver function extends the LCD life.

    5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

    6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

    7. Closed loop PID barrel temperature control.

    8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.







    SPECIFICATION HJ-240U
      A B
    Screw diameter mm 55 60
    Shot size(theoretical) cm³ 730 780
    Injection weight(PS) g 800 850
    Injection pressure Mpa 180 150
    Injection rate g/s 148 179
    Plasticizing Capacity g/s 31 37
    Clamp tonnage KN 2400
    Opening stroke mm 470
    Mold height mm 150-480
    Space between the tie bars mm 520*520
    Ejector stroke mm 135
    Ejector tonnage KN 70
    Max.pump pressure Mpa 16
    Pump motor power KW 18.5
    Heater power KW 6
    Machine dimension(L*W*H) M 5.4*1.5*2
    Machine weight T 6.5
    Hopper capacity L 340
    Oil tank capacity L 330











    Haijiang Machinery Main Configuration

    Controller Arcuchi/Porchesion(50-290T)(China)
    Techmation(360-3000T)(Taiwan)
    Vane pump Albert(USA)
    Proportional valve HJK series Northman(TAIWAN)
    HJK series Northman(TAIWAN) or TOKIMEC(Japan)
    Directional valve HNC(TAIWAN) or YUKEN(Japan)
    Electric motor Dongguan(Guangdong)
    contactor Mager(50-290T)/Schneider(China)(360-3000T)
    High pressure hose Fute(Ningbo)
    Five-star hydrauhu Dandun(China)STAFFA(UK)
    Air breaker LS(Korea)
    Thermal overland relay Schneider(China)
    Limit switch Omoron(Japan)
    Lubrication pump Automatic
    Servo motor SUMITOMO(Japan)
    Servo pump DELTA(Taiwan)
    Servo sensor ASHCROFT(Germany)



    SPARE PARTS(FOR FREE)

    1.mold clamping with bolts:8pcs 2.Nozzle:1pc
    3.Toolbox:1set 4.heating ring:2pcs
    5.lubrication oil:1 bucket 6.limit switch:2pcs
    7.hexagon wrench:1set 8.thermocouple:2pcs
    9.seal ring:2pcs 10.machine foot pad:6pcs
    11.vise:1pc 12.power socket for auxiliary machine:2pcs
    13.wrench:1pc 14.screwdriver:2pcs
