Air Cooled Industrial Air Chiller Machine 8AC Industrial Cooling Systems Chillers

China Air Cooled Industrial Air Chiller Machine 8AC Industrial Cooling Systems Chillers supplier

Large Image :  Air Cooled Industrial Air Chiller Machine 8AC Industrial Cooling Systems Chillers

Product Details:

Place of Origin: China
Brand Name: TAIHONG
Certification: CE
Model Number: KCM-8AC

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 1
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 300
Contact Now
Detailed Product Description
Name: Industrial Air Chiller Model: KCM-8AC



  • compressor is used ”COPELAND” brand which made in the USA. The inside safety protection can guarantee the long lasting of chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA. Mexico. Denmark and Japan .
  • Equipped with shell pipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained. equipped with automatic water supply device in the water-tank. Air cooled cased chiller with board type evaporator is suitable for the district of water resource and district of poor water quality.
  • larger than model XC-20 are assembles 2 sets 4 sets of compressors. So they are able to used as separate or together to reduce the resource waste complete with safety protection and error indication.
  • system including compressor over load, protection, pump over load protection, high pressure and low pressure protection and phase failure protection.

Equipment with figure intellectualized temperature control. Which can accurately measure and control

Water temperature within the range of 5℃-35℃.
Air Cooled Cased Industrial Chiller(KCM-AC)

 model
 Parameter


Specification

KCM-3AC KCM-5AC KCM-8AC KCM-10AC KCM-12AC KCM-15AC KCM-20AC KCM-25AC KCM-30AC KCM-40AC KCM-50AC KCM-100AC
Cooling capacity Kcal/h 6800 12040 19000 25200 34400 37000 45000 54000 76600 92800 113000 24300
Compressor   All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity All-closed Vorticity

Screw
compressor

Compressor power Kw 2.5 4.4 7 9 10.2 13.4 18 20.4 26.8 35 40 74
Refrigerant   R22 R22 R22 R22 R22 R22 R22 R22 R22 R22 R22 R22

Chilled water
pump power

Kw 0.75 0.75 0.75 0.75 0.75 1.5 1.5 1.5 2.2 7.5 7.5 8

Max flow rate
of chilled water

L/min 55 120 120 200 200 400 400 400 400 600 600 900

Flow water inlet
and ourlet pipe

  1'' 1'' 1.5'' 1.5'' 1.5'' 1.5'' 2'' 2'' 2'' 3'' 3'' 5''
Chilled fan power Kw 0.25 0.5 0.5 0.5 0.5 1 1 1.5 1.5 3.2 3.2 5
size length mm 1030 1100 1220 1220 1220 1220 1700 1980 1900 2000 2100 3600
size width mm 680 700 800 930 930 1050 1100 1160 1200 1200 1300 1800
size height mm 1270 1400 1450 1600 1600 1600 1920 1800 2000 2100 2100 1800

Water tank
capa

L 53 88 120 200 200 240 380 600 550 Dry-type evaporator
Weight Kg 210 290 400 450 500 550 700 750 820 980 1600 2800

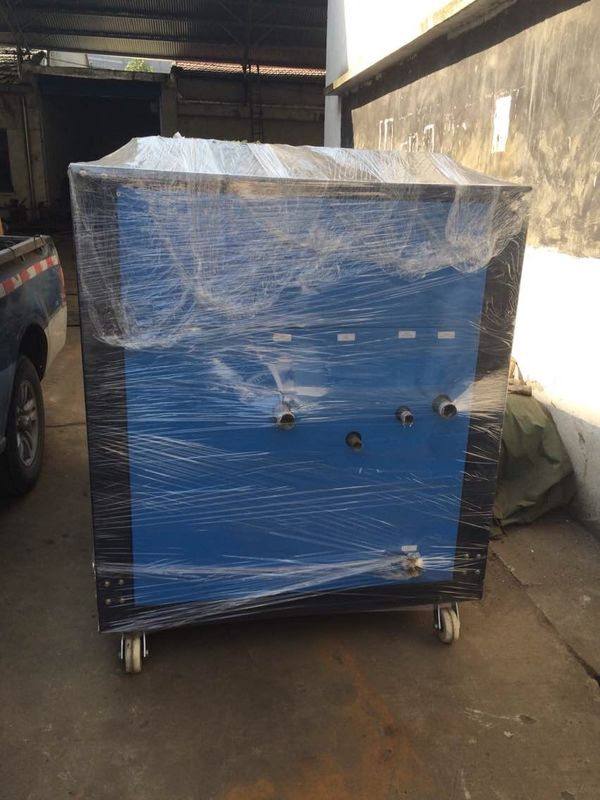

Air Cooled Industrial Air Chiller Machine 8AC Industrial Cooling Systems Chillers

Maintenance
1. Keep the loose-heating water tower clean and make around of tower in fresh air and in low temperature. And avoid mess entering into freezing tower for fear affecting efficiency of loose-heating.
2. With air cooling chiller, pls. keep the surface of loose-heating coil pipe clean, make around r in fresh air and in low temperature. And clean the dirt of coil pipe always in order to make a good efficiency of change-heating.
3. Arrange technician to clean evaporator when the chiller have been used over six months or high/low pressure appears failure always.
