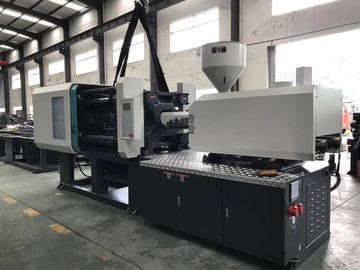

• 140ton Plastic Mold Injection Machine / Small Injection Molding Machine CPU Controller
140ton Plastic Mold Injection Machine / Small Injection Molding Machine CPU Controller

140ton Plastic Mold Injection Machine / Small Injection Molding Machine CPU Controller

Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001
Model Number: HJF140

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 20-25 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Get Best Price Contact Now

Detail Information

Shot Weight: 236grams Machine Dimension: 4.5*1.2*1.7M
Motor Power: 13kw Space Between The Tie Bar: 420*420MM
Mold Height: 170-450mm
High Light:

horizontal injection molding machine

,

plastic products making machine

Product Description

140ton Plastic Mold Injection Machine / Small Injection Molding Machine CPU Controller

140ton new injection molding machine hot sale small injection molding machine



home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
Machine main components adopt world famous brand, e.g.:


Controller Arcuchi/Porchesion(50-290T)(China)
  Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
  HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)



Main technical parameters



SPECIFICATION HJF-140
  A B C
Screw diameter mm 38 42 45
Screw L/D Ration L/D 22.1 21.6 19.5
Shot size(theoretical) cm³ 193 227 278
Injection weight(PS) g 176 206 252
Injection rate g/s 94 105 135
Injection pressure Mpa 205 159 140
Screw speed rpm 0-220
Clamping tonnage KN 1400
Opening stroke mm 380
Space between the tie bars mm 420*420
Max.mold height mm 450
Min.mold height mm 170
Ejector stroke mm 120
Ejector tonnage KN 33
Max.pump pressure Mpa 16
Pump motor power KW 13
Heater power KW 7.2
Machine dimension(L*W*H) M 4.5*1.2*1.7
Machine weight T 4.2
Oil tank capacity L 230



Characteristics



Adjustment Unit

Automatic mold height adjustment saves the time and cost during the mold changing.

Clamping Unit

The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

Hydraulic Unit

The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

Injection Unit

Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

Electronically Controlled Unit

1. CPU controller and display are independent and reliable.

2. A larger color LCD screen enhances clear display and support multi-language compatibility.

3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

4. A screen saver function extends the LCD life.

5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

7. Closed loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.



Shipping and Payment



Product Name 138 Injection  molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 25-60days
FOB port Ningbo
Payment terms T/T,L/C at sight



SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs
