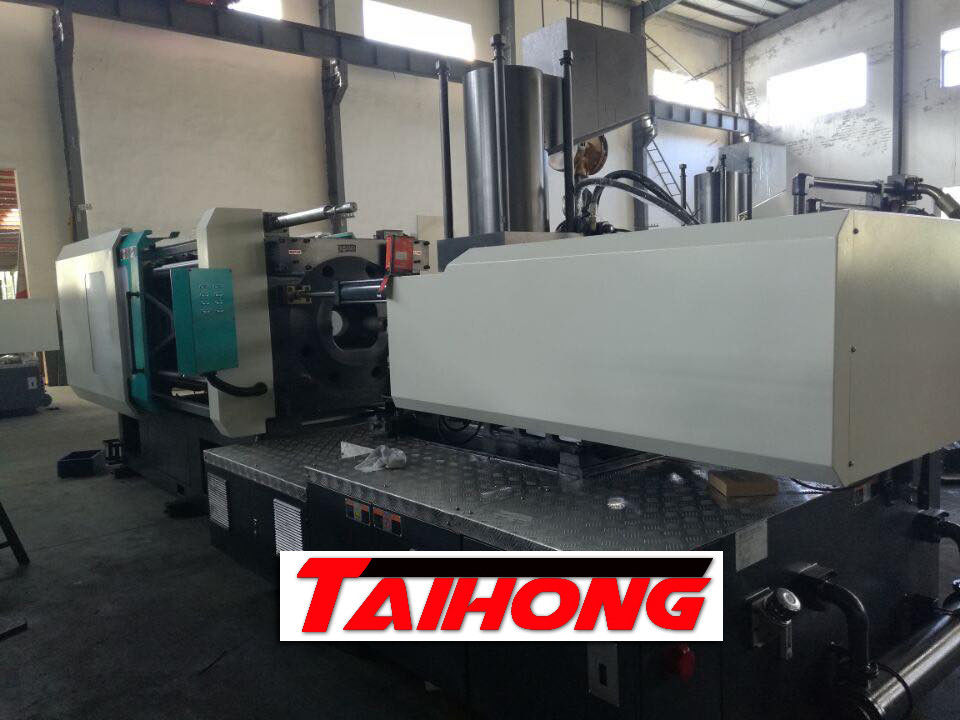

• 180tons Haijiang Horizontal standard BMC injection molding machine
180tons Haijiang Horizontal standard BMC injection molding machine

180tons Haijiang Horizontal standard BMC injection molding machine

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJ-180U

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 30sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 460~525 Injection Rate: 128~158
Clamp Tonnage: 1800 Opening Stroke: 430
Machine Dimension: 5.1*1.2*1.7 Machine Weight: 5
Highlight:

hydraulic plastic injection moulding machine

,

servo motor injection molding machine

Product Description

                                                                     Haijiang HJF-180U BMC injection molding machine

Adjustment Unit

Automatic mold height adjustment saves the time and cost during the mold changing.

Clamping Unit

The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

Hydraulic Unit

The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

Injection Unit

Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

Electronically Controlled Unit

1. CPU controller and display are independent and reliable.

2. A larger color LCD screen enhances clear display and support multi-language compatibility.

3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

4. A screen saver function extends the LCD life.

5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

7. Closed loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.







SPECIFICATION HJ-180U
  A B
Screw diameter mm 50 55
Shot size(theoretical) cm³ 420 480
Injection weight(PS) g 460 525
Injection pressure Mpa 159 140
Injection rate g/s 128 158
Plasticizing Capacity g/s 20 24
Clamp tonnage KN 1800
Opening stroke mm 430
Mold height mm 130-450
Space between the tie bars mm 470*470
Ejector stroke mm 130
Ejector tonnage KN 45
Max.pump pressure Mpa 16
Pump motor power KW 15
Heater power KW 6
Machine dimension(L*W*H) M 5.1*1.2*1.7
Machine weight T 5
Hopper capacity L 240
Oil tank capacity L 310











Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)



SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs
