0-180 Rpm Auto Injection Molding Machine With Servo 15kw Heater Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF290 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export standard |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 30sets/month |
|
Detail Information |
|||
| Injection Weight: | 648~905 | Clamp Tonnage: | 2900 |
|---|---|---|---|
| Toggle Stroke: | 585 | Space Between Tie Bar: | 600*600 |
| Machine Dimension: | 6.0*1.6*2.1 | Machine Weight: | 8.5 |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine |
||
Product Description

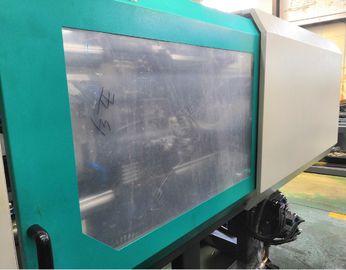

HJF-290 injection molding machine
Special control the computer for plastic injection machine use, control and display relatively independent with high reliability.
Technical parameters pre-setting and storage function
Parameters information protection function
Charging barrel temperature deviation automatic adjustment function
Abnormal alarm function
Front and back door emergency stop button
Real-time monitoring can display the condition of each motion
Electrical motor safety protection device
Robotic pincher interface
Cutting photoelectric switch
System hardware I/O detection function
Charging barrel temperature is controlled accurately by computer setting and PID closed-loop manner.
Screen protection function , prolong the life of screen using.
Full-enclosed electrical-controlled box, electrical components are neatly arranged, never interfere with each other.
| SPECIFICATION | HJ-290U | |||
| A | B | C | ||
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D Ratio | L/D | 23.1 | 21 | 19.3 |
| Shot size(theoretical) | cm³ | 712 | 847 | 994.9 |
| Injection weight(PS) | g | 648 | 779.9 | 905 |
| Injection pressure | Mpa | 205 | 168 | 143 |
| Injection rate | g/s | 210 | 240 | 270 |
| Screw Speed | rpm | 0~180 | ||
| Clamp tonnage | KN | 2900 | ||
| Opening stroke | mm | 585 | ||
| Space between the tie bars | mm | 600*600 | ||
| Max.Mold Height | mm | 600 | ||
| Min.Mold Height | mm | 220 | ||
| Ejector stroke | mm | 150 | ||
| Ejector tonnage | KN | 75 | ||
| Max.pump pressure | Mpa | 16 | ||
| Pump motor power | KW | 30 | ||
| Heater power | KW | 15 | ||
| Machine dimension(L*W*H) | M | 6.0*1.6*2.1 | ||
| Machine weight | T | 8.5 | ||
| Oil tank capacity | L | 570 | ||
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
