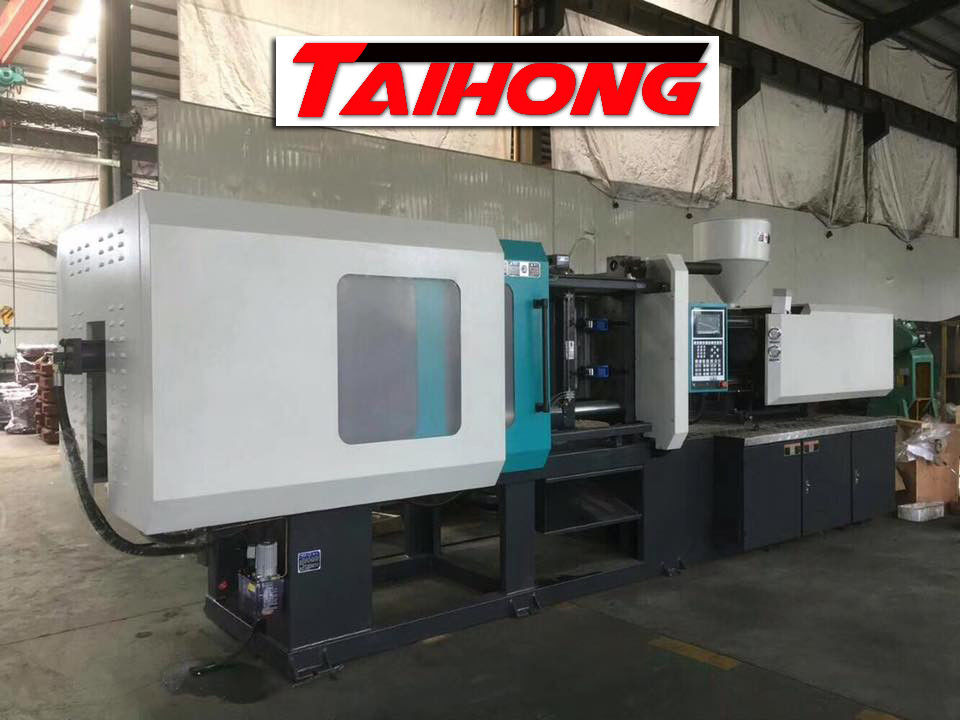

    Plastic injection molding mschine 20000KN Haijiang horizontal standard

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Export standard
    Delivery Time: 60days
    Payment Terms: T/T
    Supply Ability: 20sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 8608~13356 Injection Rate: 1172~1776
    Clamp Tonnage: 20000 Space Between Tie Bar: 1650*1500
    Machine Dimension: 17.8*3.35*4.28m Machine Weight: 156ton
    High Light:

    pvc pipe fitting injection molding machine

    ,

    servo motor injection molding machine

    Product Description

    Plastic injection molding mschine 20000KN Haijiang horizontal standard

                                         HJF-2000 injection molding machine

    Stable Injection Device
    A PID temperature control, precise temperature control of barrel.
    There are three or four screws and barrels with optimal design
    Respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics and the choice of product.
    Two-guided direct line guided bar supports, double-balanced rapid injection.
    The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision electronic device position detection enable accurate measurement.
    Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
    Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge,
    Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed.

    Competitive advantages:
    +injection Units
    High injection pressure , High injection speed
    +HYDRAULIC SYSTEM
    Fast respone, stable output
    +Electronic Units
    intelligent control unit

    Electronically Controlled Unit
    1. CPU controller and display are independent and reliable.
    2. A larger color LCD screen enhances clear display and support multi-language compatibility.
    3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
    4. A screen saver function extends the LCD life.
    5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
    6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
    7. Closed loop PID barrel temperature control.
    8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.


    SPECIFICATIONHJF-2000
     ABC

    D


    Screw diametermm130140150160
    Screw L/D RatioL/D25.92422.420.9
    Shot size(theoretical)cm³9460112381290014678
    Injection weight(PS)g8608102261173913356
    Injection pressureMpa190163142125
    Injection rateg/s1172136015601776
    Screw Speedrpm70
    Clamp tonnageKN20000
    Opening strokemm1600
    Space between the tie barsmm1650*1500
    Max.Mold Heightmm1620
    Min.Mold Heightmm800
    Ejector strokemm420
    Ejector tonnageKN490
    Max.pump pressureMpa16.5
    Pump motor powerKW45+55+55
    Heater powerKW110.7
    Machine dimension(L*W*H)M17.80*3.35*4.28
    Machine weightT156
    Oil tank capacityL3700



    Haijiang Machinery Main Configuration

    ControllerArcuchi/Porchesion(50-290T)(China)
    Techmation(360-3000T)(Taiwan)
    Vane pumpAlbert(USA)
    Proportional valveHJK series Northman(TAIWAN)
    HJK series Northman(TAIWAN) or TOKIMEC(Japan)
    Directional valveHNC(TAIWAN) or YUKEN(Japan)
    Electric motorDongguan(Guangdong)
    contactorMager(50-290T)/Schneider(China)(360-3000T)
    High pressure hoseFute(Ningbo)
    Five-star hydrauhuDandun(China)STAFFA(UK)
    Air breakerLS(Korea)
    Thermal overland relaySchneider(China)
    Limit switchOmoron(Japan)
    Lubrication pumpAutomatic
    Servo motorSUMITOMO(Japan)
    Servo pumpDELTA(Taiwan)
    Servo sensorASHCROFT(Germany)


    SPARE PARTS(FOR FREE)

    1.mold clamping with bolts:8pcs2.Nozzle:1pc
    3.Toolbox:1set4.heating ring:2pcs
    5.lubrication oil:1 bucket6.limit switch:2pcs
    7.hexagon wrench:1set8.thermocouple:2pcs
    9.seal ring:2pcs10.machine foot pad:6pcs
    11.vise:1pc12.power socket for auxiliary machine:2pcs
    13.wrench:1pc14.screwdriver:2pcs
