Product Details:

Place of Origin: China
Brand Name: taihong
Certification: ISO9001
Model Number: HJF80

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 20 days
Payment Terms: TT, L/C, Western Union, MoneyGram
Supply Ability: 500sets/month
Get Best Price Contact Now

Detail Information

Shot Weight300rams: 91.9/111grams Motor Power: 9kw
Heating Power: 5.3kw Machine Weight: 3 Tons
Machine Dimension: 3.5m*1.2m*1.6m
High Light:

hydraulic plastic injection moulding machine

,

pvc pipe fitting injection molding machine

Product Description

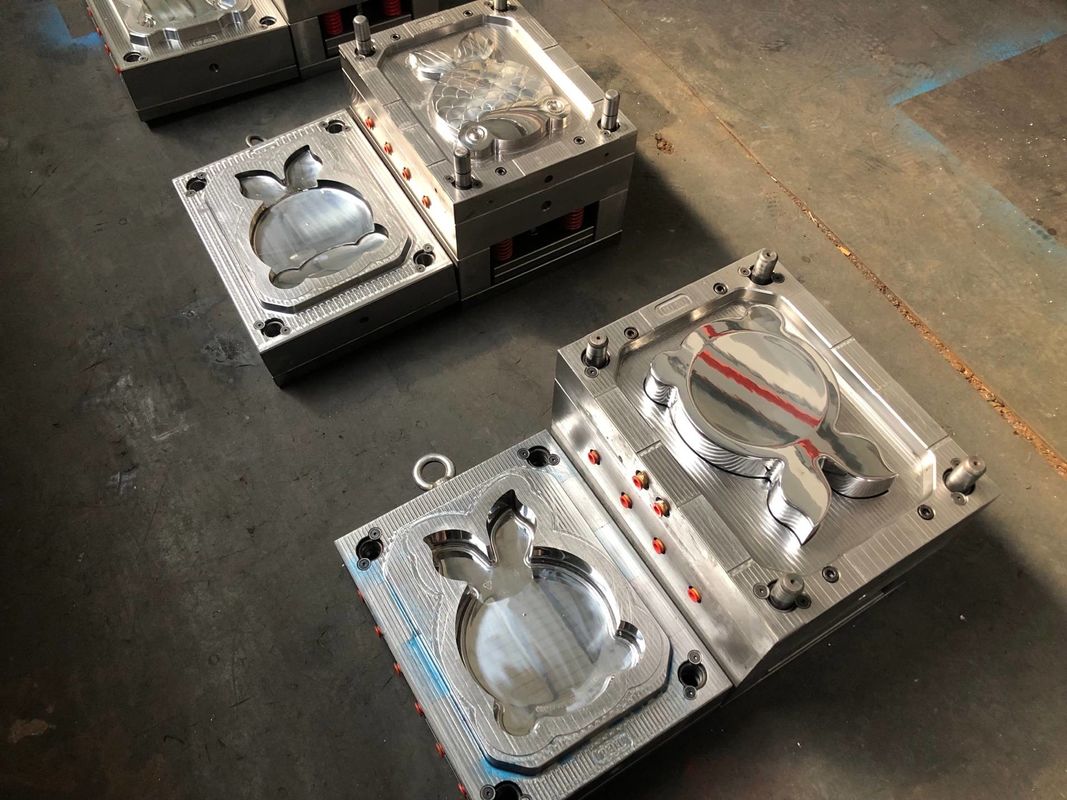

fish shape container making machine , Auto Injection Molding Machine , container box for candy food

Main Features

1) High precision,high stability,scientific and reasonable mechanical system,hydraulic system.

2)High speed high efficiency and energy saving,adopt advanced closed-loop servo dynamic system of the gear pump.

3)Super-large molar volume and mould opening stroke.

4) Convenient automatic variable function.

5) Stanard differential adhesive function,improve the stability nd shoot adhesive rate.

6)Cover small area,save working space.

7)Can realize injection molding process,multistage clamping force control,realize the high-speed low pressure injection,with the increase of injection pressure,increase clamping force,such stress small molding products,high quality.

8)Clamping force can be controlled,repeat good reproducibility,and even added to the mold,improve product accuracy,while protecting the mould,to extend the useful life of the mold and machine.



Main application

This is a new generation packaging machinery which is developed on the basis of introducing and absorbing the advanced technology from America, Japan and Germany. Adopts top quality components like Japanese Mitsubishi PLC, SMC pneumatic components, American Nordson hot melt adhesive, ensures the carton forming, packing, folding, glue spraying, sealing and the following packaging process continuously and automatically finished. With characteristics of reasonable structure, stable performance, reliable quality, high productivity, wide adaptability, and high degree automation. Widely used in instant noodles, cigarettes, liquor, beverage and other cartoon packaging products



Characteristics



1. Adopts the imported control components, durable, safe, and low failure rate.

2. Use human-computer interface, simple and more visually oriented.

3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.

4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.

5. Low power consumption, simple and convenient operation, low noise.



Specification



Injection Unit UNIT A B
Screw diameter mm 32 36
Screw L/D ratio L/D 21.5 19.8
Shot size(theoretical) CM³ 101 123
Injection weight(ps) g 91.9 111
Injection rate g/s 70 82
Injection pressure Mpa 188 148.5
Screw speed rpm 0-220
Clamping Unit
Clamp tonnage KN 800
toggle Stroke Mm 275
Space Between tie Bars mm 315*315
Max.mold height mm 320
Min.mold height mm 120
Ejector Stroke Mm 80
Ejector tonnage KN 27
Others
Max.pump pressure Mpa 16
Pump motor power KW 9
Heater power kw 5.3
Machine size(L x W x H) m 3.5*1.2*1.6
Machine weight Ton 3
Oil tank capacity L 210
