Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001 CE
Model Number: HJ-180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 25-60 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Get Best Price Contact Now

Detail Information

Shot Weight: 525grams Machine Weight: 5tons
Machine Dimension: 5.1*1.2*1.7M Space Between The Tie Bar: 470*470MM
Mold Height: 130-450mm Oil Tank: 310L
High Light:

horizontal injection molding machine

,

plastic products making machine

Product Description

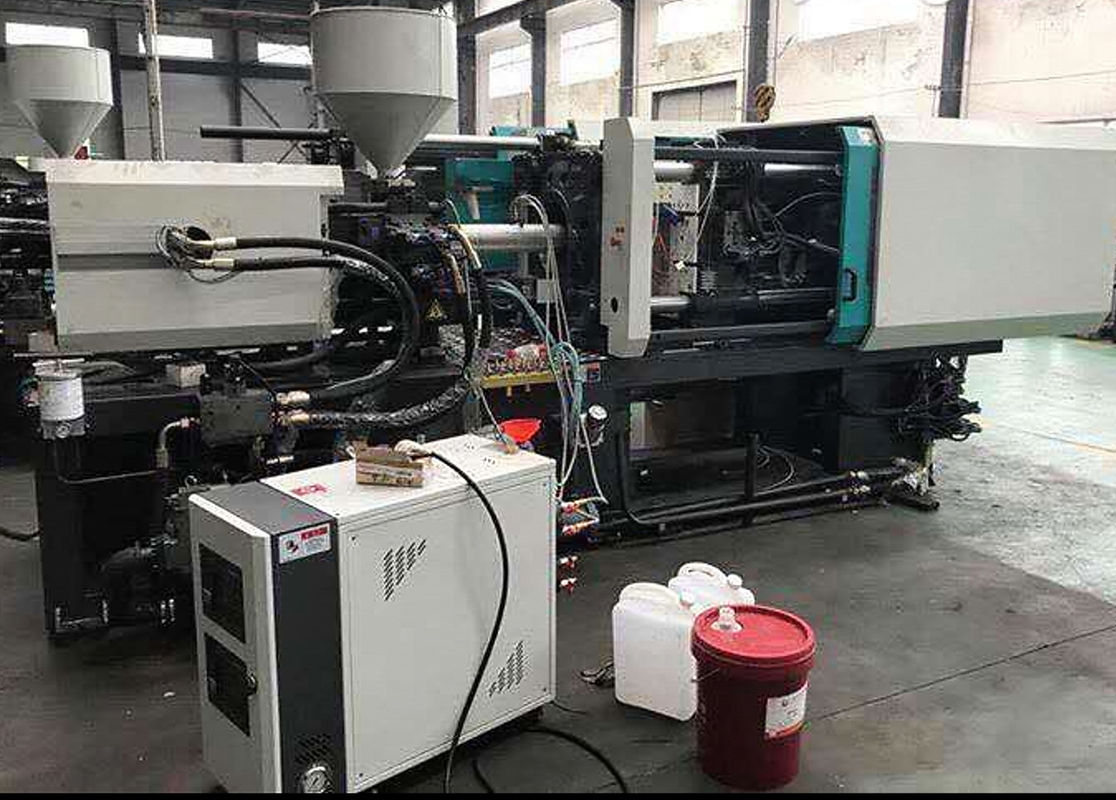

Barrel Heating Bakelite Injection Molding Machine With Temperature Controller

Bakelite injection molding machine with temperature controller for barrel heating





Adjustment Unit

Automatic mold height adjustment saves the time and cost during the mold changing.

Clamping Unit

The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

Hydraulic Unit

The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

Injection Unit

Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

Electronically Controlled Unit

1. CPU controller and display are independent and reliable.

2. A larger color LCD screen enhances clear display and support multi-language compatibility.

3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

4. A screen saver function extends the LCD life.

5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

7. Closed loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.







component list



Controller Arcuchi/Porchesion(50-290T)(China)
  Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
  HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)



Main technical parameters

SPECIFICATION HJ-180
  A B
Screw diameter mm 50 55
Shot size(theoretical) cm³ 420 480
Injection weight g 460 525
Injection pressure Mpa 159 140
Injection rate g/s 128 158
Plasticizing Capacity g/s 20 24
Clamp tonnage KN 1800
Opening stroke mm 430
Mold height mm 130-450
Space between the tie bars mm 470*470
Ejector stroke mm 130
Ejector tonnage KN 45
Max.pump pressure Mpa 16
Pump motor power KW 15
Heater power KW 6
Machine dimension(L*W*H) M 5.1*1.2*1.7
Machine weight T 5
Hopper capacity L 240
Oil tank capacity L 310





bakelite product

Barrel Heating Bakelite Injection Molding Machine With Temperature Controller 0





Characteristics



1. Adopts the imported control components, durable, safe, and low failure rate.

2. Use human-computer interface, simple and more visually oriented.

3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.

4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.

5. Low power consumption, simple and convenient operation, low noise.

6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.



Shipping and Payment



Product Name  bakelite Injection  molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 25-60days
FOB port Ningbo
Payment terms T/T,L/C at sight
