Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001
Model Number: HJF360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 20-25 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Get Best Price Contact Now

Detail Information

Shot Weight: 1180grams Machine Weight: 12tons
Machine Dimension: 6.3*1.9*2.4M Oil Tank: 620L
Space Between The Tie Bar: 680*680MM
High Light:

horizontal injection molding machine


plastic products making machine

Product Description

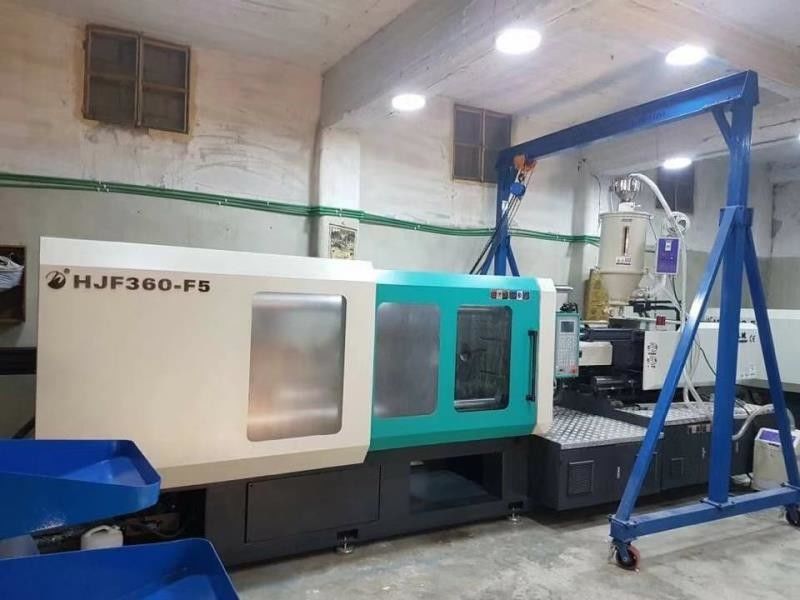

Plastic Candy Box Injection Making Machine / Energy Saving Injection Molding Machine

plastic candy box making machine , energy saving injection molding machine ​



we could supply tthree kinds of injection moulding machine


1. Normal injection moulding machine

2.Servo injection molding machine

3.high speed injection molding machine


PP PE PVC PET PS PPR injection moulding machine


We are prefessional production base specialized in designing and manufacturing plastic injection machines from 80 to 3000ton, enjoy high reputation in the Plastic machinery industry.

Welcome contact us for more details and professional service.



home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
Machine main components adopt world famous brand, e.g.:

Controller Arcuchi/Porchesion(50-290T)(China)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
  HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)


Main technical parameters


  A B C D
Screw diameter mm 60 65 70 75
Screw L/D Ration L/D 22.6 21.2 19.4 18.5
Shot size(theoretical) cm³ 960 1128 1306 1480
Injection weight(PS) g 873 1026 1180 1346
Injection rate g/s 239 275 328 420
Injection pressure Mpa 213 183 160 146
Screw speed rpm 0-180
Clamping tonnage KN 3600
Opening stroke mm 700
Space between the tie bars mm 680*680
Max.mold height mm 670
Min.mold height mm 240
Ejector stroke mm 160
Ejector tonnage KN 62
Max.pump pressure Mpa 16
Pump motor power KW 37
Heater power KW 17.25
Machine dimension(L*W*H) M 6.3*1.9*2.4
Machine weight T 12
Oil tank capacity L 620




Adjustment Unit

Automatic mold height adjustment saves the time and cost during the mold changing.

Clamping Unit

The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

Hydraulic Unit

The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

Injection Unit

Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

Electronically Controlled Unit

1. CPU controller and display are independent and reliable.

2. A larger color LCD screen enhances clear display and support multi-language compatibility.

3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

4. A screen saver function extends the LCD life.

5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

7. Closed loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.


Shipping and Payment


Product Name 138 Injection  molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 25-60days
FOB port Ningbo
Payment terms T/T,L/C at sight



1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs
