Payment & Shipping Terms:
|Shot Weight:||779.9grams||Machine Weight:||8.5tons|
|Machine Dimension:||6.0*1.6*2.1M||Oil Tank:||570L|
|Space Between The Tie Bar:||600*600MM|

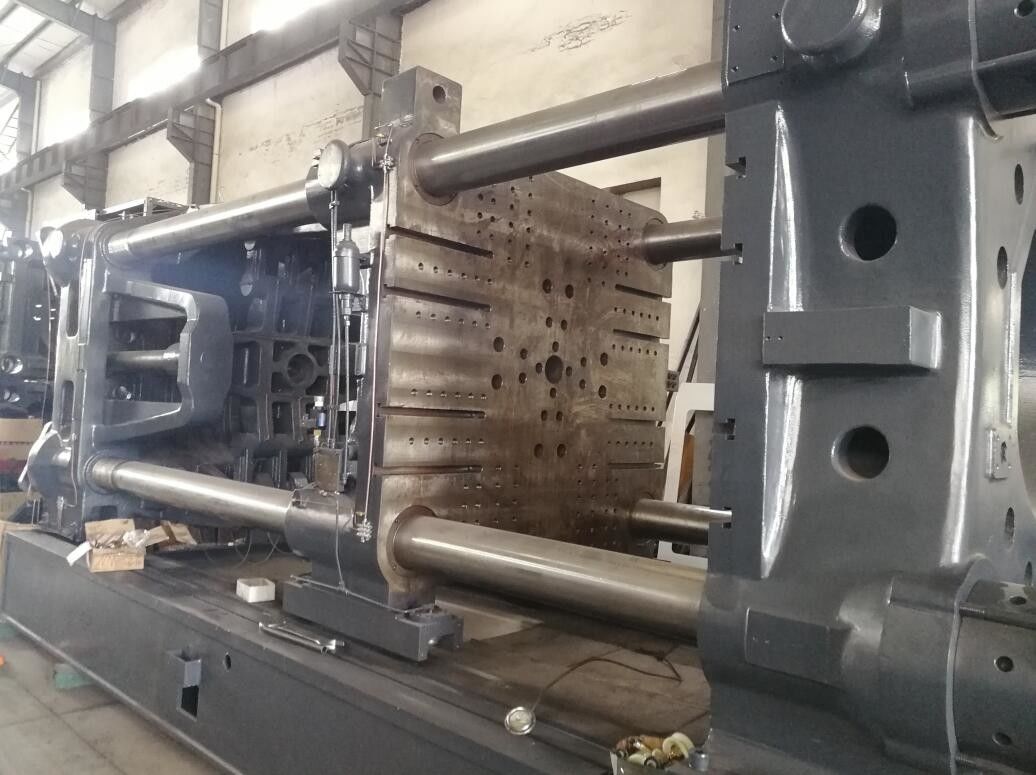

iml label plastic injection molding machine connected with robot
Injection Molding Machines widely used in Automotive, Packaging, Electrical, Medical, Household and Appliance sectors. In particular, increasing demand in emerging economies fueled the growth of the injection molding machine market.
home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
Machine main components adopt world famous brand, e.g.:
|Proportional valve||HJK series Northman(TAIWAN)|
|HJK series Northman(TAIWAN) or TOKIMEC(Japan)|
|Directional valve||HNC(TAIWAN) or YUKEN(Japan)|
|High pressure hose||Fute(Ningbo)|
|Thermal overland relay||Schneider(China)|
Main technical parameters
|Screw L/D Ration||L/D||23.1||21||19.3|
|Space between the tie bars||mm||600*600|
|Pump motor power||KW||30|
|Oil tank capacity||L||570|
Automatic mold height adjustment saves the time and cost during the mold changing.
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
Shipping and Payment
|Product Name||138 Injection molding machine|
|Packing||Export standard package|
|FOB price||Please contact for new price|
|Payment terms||T/T,L/C at sight|
SPARE PARTS(FOR FREE)
|1.mold clamping with bolts:8pcs||2.Nozzle:1pc|
|5.lubrication oil:1 bucket||6.limit switch:2pcs|
|9.seal ring:2pcs||10.machine foot pad:6pcs|
|11.vise:1pc||12.power socket for auxiliary machine:2pcs|
Contact Person: Rintar Chen
