Electric Switch Socket Making Machine / Injection Molding Machine 330L Oil Tank

China Electric Switch Socket Making Machine / Injection Molding Machine 330L Oil Tank supplier

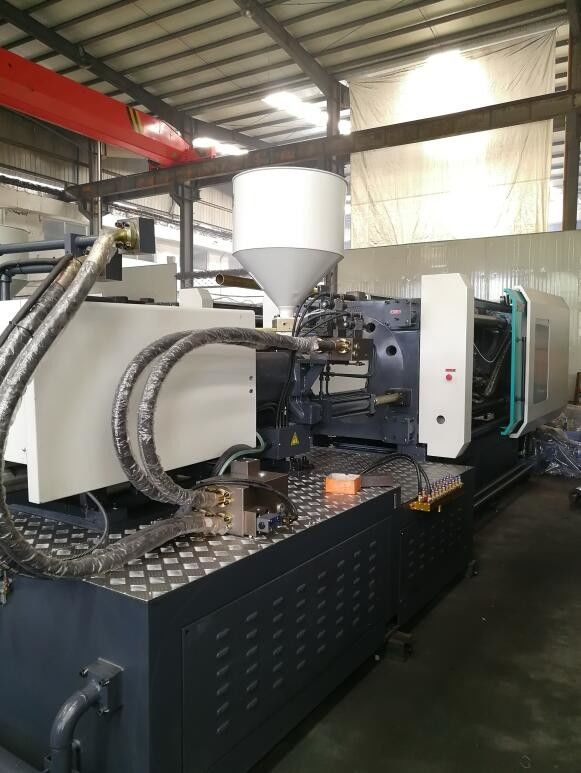

Large Image :  Electric Switch Socket Making Machine / Injection Molding Machine 330L Oil Tank

Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001 CE
Model Number: HJ-240U

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 25-60 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Shot Weight: 850grams Machine Weight: 6.5tons
Machine Dimension: 5.4*1.5*2M Space Between The Tie Bar: 520*520MM
Mold Height: 150-480mm Oil Tank: 330L

high quality electric switch socket making machine injection molding machine
Injection moulding machines are packed with wooden pallets, covered with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving.
- high machinery strength:products are strengthened by glass fiber to greatly improve its machinery strength,compsred to the other thermoset engineering plastics.
- color performance:any color can be adjusted and produced.no baking finish is used again.it has fresh and real color closing to perfection.
- processing performance:it has stable size shrinkage.high preci-sionsmooth and beautiful surface.it can be processed by plastic injection molding machine ,mold comporession molding machine and multi-station Pla-stic injection molding machine.
- electrical insulation:it's suitable for electrical products with high voltage resistance,dielectric property,high insulation and are resistance.
-high corrosion resistance:it's suitable for plastic such as specimen andbaffle plate of various projects.
-flame resistance performance:coming up to american UL-94Vo level.
-heat resistance performance:no heat crack happens under very high thermal deformation temperature(22-260℃)
component list

ControllerArcuchi/Porchesion(50-290T)(China)
 Techmation(360-3000T)(Taiwan)
Vane pumpAlbert(USA)
Proportional valveHJK series Northman(TAIWAN)
 HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valveHNC(TAIWAN) or YUKEN(Japan)
Electric motorDongguan(Guangdong)
contactorMager(50-290T)/Schneider(China)(360-3000T)
High pressure hoseFute(Ningbo)
Five-star hydrauhuDandun(China)STAFFA(UK)
Air breakerLS(Korea)
Thermal overland relaySchneider(China)
Limit switchOmoron(Japan)
Lubrication pumpAutomatic
Servo motorSUMITOMO(Japan)
Servo pumpDELTA(Taiwan)
Servo sensorASHCROFT(Germany)


Main technical parameters



SPECIFICATIONHJ-240U
 AB
Screw diametermm5560
Shot size(theoretical)cm³730780
Injection weightg800850
Injection pressureMpa180150
Injection rateg/s148179
Plasticizing Capacityg/s3137
Clamp tonnageKN2400
Opening strokemm470
Mold heightmm150-480
Space between the tie barsmm520*520
Ejector strokemm135
Ejector tonnageKN70
Max.pump pressureMpa16
Pump motor powerKW18.5
Heater powerKW6
Machine dimension(L*W*H)M5.4*1.5*2
Machine weightT6.5
Hopper capacityL340
Oil tank capacityL330




Characteristics

1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.

Shipping and Payment


Product NameBMC Injection  molding machine
PackingExport standard package
MOQ1 set
FOB pricePlease contact for new price
Delivery time25-60days
FOB portNingbo
Payment termsT/T,L/C at sight
