Cold / Hot Runner Auto Injection Molding Machine Multi Cavities H45 - 52 Hardness
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | Plastic molds |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export standard |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
|
Detail Information |
|||
| Mold Material: | 45#,50#,P20,H13, 718 2738, NAK80, S136, SKD61 Etc | Mold Base: | LKM, FUTA, HASCO, DME, Etc. Or As Per Customer' S Requirement. |
|---|---|---|---|
| Runner: | Cold/hot Runner | Cavity: | Multi Cavities |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine,hydraulic plastic injection moulding machine |
||
Product Description

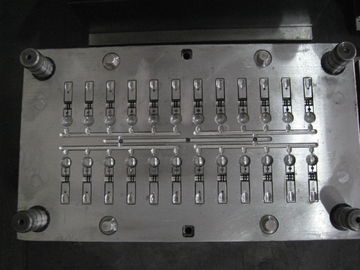

cold / hot runner Auto Injection Molding Machine Multi cavities
Mould Information:
| Mold information | content |
| Product Material | ABS,PP,PC,PA,PMMA,PS,POM and etc. |
| Moldbase | FUTABA,LKM,HASCO,DME you can choose |
| Cavity material | 45#,50#,P20,H13, 718 2738, NAK80, S136, SKD61 etc |
| Runner | Cold/Hot runner |
| Cavity | Multi or single cavity |
| Standart parts | Hasco |
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc |
| Treatment | Heat treatment and Nitriding,polish ect. |
| HRC | H45~52 |
| Product weight | 50~5000 K |
| Machine type | 250Ton |
| The standard of appearance of the products for stripe | MT(Mold Tech),YS,HN series |
| The way of Color contrast | RAL K7,PANTONE |
Plastic molding Specification
1. Professional manufacturer,design,production injection mould and stamping mould quality control
2. rich export experience plastic injection mould and stamping mould
3. Reasonable price of design mould
4. Cavities: single or as per your requirements cavity
5. Treatment: S45C Pretreat>25Hrc,And Nitriding
6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available
7. Standard:DEM ,HUSKY,available
8. Hot runner: according to your demand
9. Life time: >300 Thousand Times
10. Package: Plywood case, anti-rust paint
| Mould Produce Process | ||
| 1 | Product Design |
Customer send us the product drawing directly or we draw the product according to the sample,then we send customer the product drawing to confirm |
| 2 | Mould Design |
We'll start to design mould after the product drawing confirmed,then send customer the mould drawing to confirm |
| 3 | Mould Making |
The mould start to make after the mould drawing confirmed,the process include prepare steel,rough cut,finish machining,assembly etc |
| 4 | Mould Test |
we'll test the mould after mould assembly,then we'll send customer samples and video of mould test to confirm |
| 5 | Final Process |
The mould start to polish if the sample is ok,and make grain,nitridation or chroming if customer required |
| 6 | Mould Test |
We'll test the mould again after polishing,then send customer the final sample and video of mould test to confirm |
| 7 | Mould Packing |
The mould stard to pack with wooden case after the final sample confirmed, then the mould will be sent to port and waiting for shipping |
Advantages of injection plastic parts
- Competitive price
- Continuance service and support
- Diversified rich experienced skilled workers
- Custom R&D program coordination
- Application expertise
- Quality,reliability and long product life
- Mature,perfect and excellence,but simple design
Steps of injection plastic parts
- Negotiations: Quality,material,price,payment,delivery time item and so on
- Place an order: According customer's drawing or sample
- R&D: According customer's requirements,we could design or improve 3D modeling
- Design confirmation: We send 3D drawing to customer for confirmation before we make the mould
- Mould processing: CNC EDM machine processing then assembly and trial
- Sample confirm: We will send trial sample to customers.Before shipment,If the sample isn’t satisfied by customers.We will modify mould until they are satisfied.
- Mass production: If customers need mass production of plastic products,We can offer
- Manufacturing Package and Delivery
