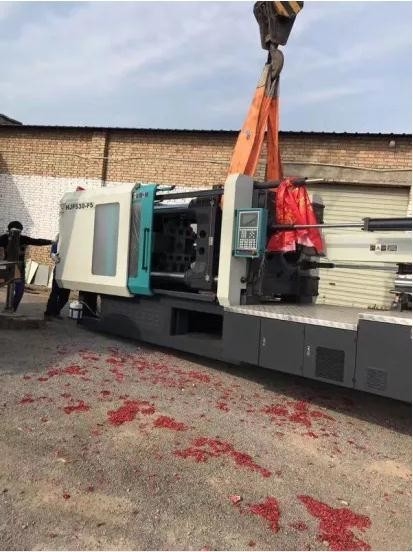

• Horizontal 530 Ton Servo Injection Moulding Machine With High Performance
Horizontal 530 Ton Servo Injection Moulding Machine With High Performance

Horizontal 530 Ton Servo Injection Moulding Machine With High Performance

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF530

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$60,000/setSET
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 1560~2614 Injection Rate: 386~625
Clamp Tonnage: 5300 Toggle Stroke: 770
Space Between Tie Bar: 820*800 Machine Dimension: 8.4*1.92*2.76m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

                                              Injection Molding Machine HJF530



Hydraulic System:
1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould
7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation





Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.





SPECIFICATION HJF530
Screw Type A B C

D

fruit basket

Screw Diameter Mm 75 80 85 100
Screw L/D Ration L/D 22.7 21 20 17.5
Shot Size(Theoretical) cm3 1727 1965 2218 2904
Injection Weight(PS) g 1560 1788 2018 2614
Injection Rate g/s 386 442 499 625
Injection Pressure MPa 191 168 148 115
Screw Speed rpm 130
Clamping Force KN 5300
Opening stroke Mm 820
Space Between Tie Bars mm 820*820
Max.Mold Height mm 810
Min.Mold Height mm 330
Ejector Stroke mm 240
Ejector Tonnage KN 150
Max.Pump Pressure MPa 16
Pump Motor Power KW 45
Heater power KW 31.4
Machine Dimension(L*W*H) M 8.4*1.92*2.76
Machine weight T 20
Oil Tank Capacity L 900





Haijiang Machinery Main configuration



Standard machinery

PLC TECHMATION (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor Schneider(France)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)/Schneider(France)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)



Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
