Disposable Teeth Brush Plastic Injection Molding Machine High Performance
Product Details:
Place of Origin: | China |
Brand Name: | Taihong |
Certification: | ISO9001 |
Model Number: | HJ-280S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | / |
Packaging Details: | Export Standard |
Delivery Time: | 25-60 days |
Payment Terms: | TT, L/C |
Supply Ability: | 500sets/month |
Detail Information |
|||
Shot Weight: | 402grams | Machine Weight: | 1.3tons |
---|---|---|---|
Machine Dimension: | 6.25*2.2*2.3 | Oil Tank: | 500L |
Space Between The Tie Bar: | 925*575 | Mold Thickness: | 200-600mm |
High Light: | plastic products making machine,bakelite injection molding machine,horizontal injection molding machine |
Product Description

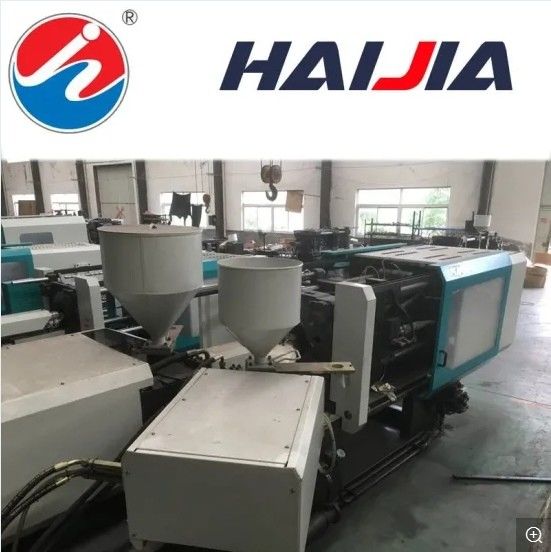

plastic two color bowl / disposable teeth brush injection molding machine
Injection System
Injection parts with double guide pillar support structure, smooth two cylinder injection device, shoot and two improved nozzle adjustment easy, can be operated by simple adjustment of the nozzle and the mould center. Injection unit 3 different screw diameter in each group, for customers to choose, fully meet the requirements of personalized processing technology.
-hydraulic clamping rotation holding limit device,hold rotation table before open and close,rotation table not slanted.
-reinforced rotation table running support construction,fix rotation table not slanted.
-oil and water circuit is clean and tidy inside drum-type rotation table axle.
-diversified core pulling and blow function.
-two set injection unit use single cylinder one line injection structure.The distance between two injection unit adjustable,can fit bigger scope mold size,injection unit is movable,can work as single color machine too.
component list
Controller | Arcuchi/Porchesion(50-290T)(China) |
Techmation(360-3000T)(Taiwan) | |
Vane pump | Albert(USA) |
Proportional valve | HJK series Northman(TAIWAN) |
HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
Electric motor | Dongguan(Guangdong) |
contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
High pressure hose | Fute(Ningbo) |
Five-star hydrauhu | Dandun(China)STAFFA(UK) |
Air breaker | LS(Korea) |
Thermal overland relay | Schneider(China) |
Limit switch | Omoron(Japan) |
Lubrication pump | Automatic |
Servo motor | SUMITOMO(Japan) |
Servo pump | DELTA(Taiwan) |
Servo sensor | ASHCROFT(Germany) |
Main technical parameters
HJ280-S | |||||||||||||||||
A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | |||
Injection unit | |||||||||||||||||
Screw diameter | mm | 26 | 28 | 30 | 30 | 35 | 40 | 40 | 45 | 50 | 26 | 28 | 30 | 30 | 35 | 40 | |
Screw L/D Ratio | L/D | 23 | 21.5 | 20 | 24 | 20.5 | 18 | 23 | 20.5 | 18.5 | 23 | 21.5 | 20 | 24 | 20.5 | 18 | |
Shot size(ps) | CM³ | 72.7 | 84.4 | 96.8 | 141.4 | 192.4 | 251.3 | 282.7 | 357.8 | 441.8 | 72.7 | 84.4 | 96.8 | 141.4 | 192.4 | 251.3 | |
Shot weight | g | 66.2 | 76.8 | 88.1 | 128.6 | 175.1 | 228.7 | 257.3 | 325.6 | 402.0 | 66.2 | 76.8 | 88.1 | 128.6 | 175.1 | 228.7 | |
oz | 2.3 | 2.7 | 3.1 | 4.5 | 6.1 | 8.0 | 9.0 | 11.4 | 14.1 | 2.3 | 2.7 | 3.1 | 4.5 | 6.1 | 8.0 | ||
Injection pressure | Mpa | 285 | 246 | 214 | 304 | 223 | 171 | 298 | 235 | 190 | 285 | 246 | 214 | 304 | 223 | 171 | |
Injection stroke | mm | 137 | 200 | 225 | 137 | 200 | |||||||||||
Screw speed | R/min | 220 | 200 | 200 | 220 | 200 | |||||||||||
Center-to-center distance | mm | ||||||||||||||||
Clamping unit | |||||||||||||||||
Clamp tonnage | KN | 2800 | |||||||||||||||
Toggle stroke | mm | 520 | |||||||||||||||
Space between Tie-bar | mm | 925*575 | |||||||||||||||
Max.template distance | mm | 1120 | |||||||||||||||
Mold thickness | mm | 200-600 | |||||||||||||||
Ejector tonnage | KN | 33*2 | |||||||||||||||
Ejector stroke | mm | 100 | |||||||||||||||
Rotary table diameter | mm | 1020 | |||||||||||||||
Mold quantity | 2 | ||||||||||||||||
Electric power | |||||||||||||||||
Hydraulic system pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | |||||||||||
Max.pump power | KW | 11 | 18.5 | 30 | 11 | 18.5 | |||||||||||
Pump motor output | L/min | 69 | 92 | 140 | 69 | 92 | |||||||||||
Heating power | KW | 4.75 | 6.5 | 9.6 | 4.75 | 6.5 | |||||||||||
No.of temperature control | unit | 4 | 4 | 5 | 4 | 4 | |||||||||||
Others | |||||||||||||||||
Oil tank | L | 500 | |||||||||||||||
Machine size(L*W*H) | m | 6.25*2.2*2.3 | |||||||||||||||
Machine weight | kg | 13000 |
Characteristics
1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.
two color porducts
Shipping and Payment
Product Name | clear two color Injection molding machine |
Packing | Export standard package |
MOQ | 1 set |
FOB price | Please contact for new price |
Delivery time | 25-60days |
FOB port | Ningbo |
Payment terms | T/T,L/C at sight |
