330L Oil Tank Plastic Mold Injection Machine / 240 Ton Automatic Injection Moulding Machine

China 330L Oil Tank Plastic Mold Injection Machine / 240 Ton Automatic Injection Moulding Machine supplier

Large Image :  330L Oil Tank Plastic Mold Injection Machine / 240 Ton Automatic Injection Moulding Machine

Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001 CE
Model Number: HJ-240U

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 25-60 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Shot Weight: 850grams Machine Weight: 6.5tons
Machine Dimension: 5.4*1.5*2M Space Between The Tie Bar: 520*520MM
Mold Height: 150-480mm Oil Tank: 330L

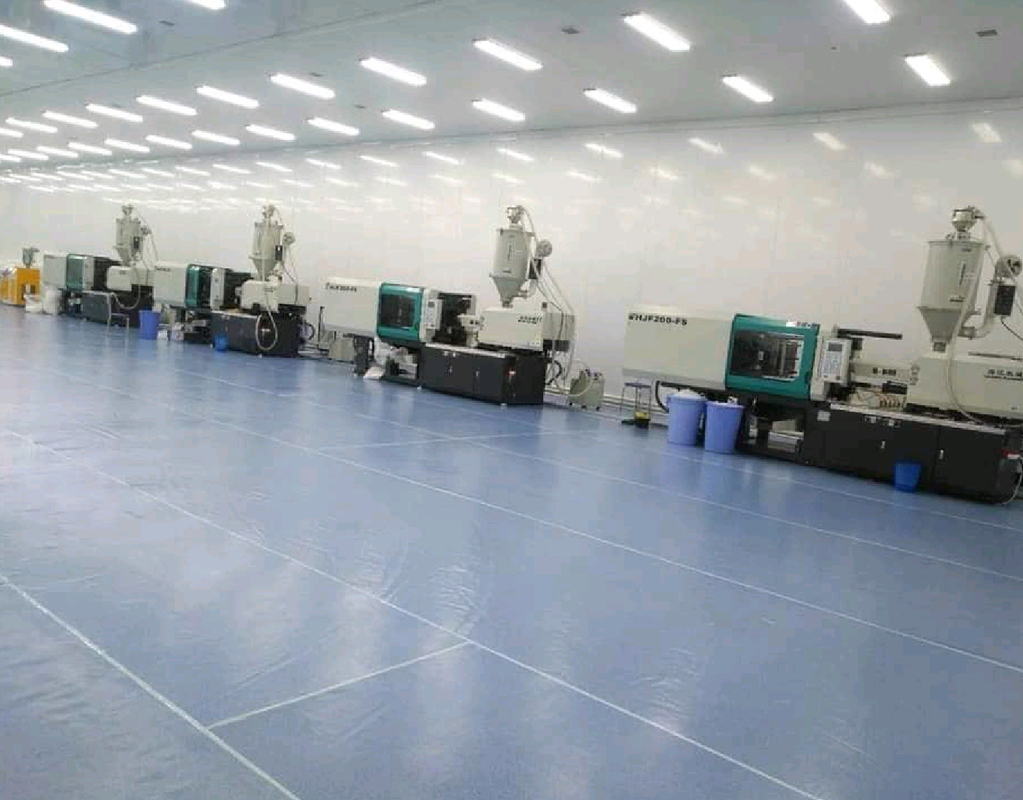

240ton plastic products production line with all auxiliary equipments


  Differential high speed clamping
Centralized lubrication system
 Low pressure mould protection device
 Mechanical safety interlock
Double electrical safety interlock
Oil return filter
BMC is block molding conpound,It is also called DMC dough molding conpound or polyester for short in China.It is the hinghest classmaterals in various thermoset molded materials.

BMC special machine is equiped with thermosetting physicochemical parts which is especially for BMC material and it has special charging,automatic comoressing device and system optimization module composed with particular high torque hydraulic motor, material storage & special injection cylinder system

- high machinery strength:products are strengthened by glass fiber to greatly improve its machinery strength,compsred to the other thermoset engineering plastics.
- color performance:any color can be adjusted and produced.no baking finish is used again.it has fresh and real color closing to perfection.
- processing performance:it has stable size shrinkage.high preci-sionsmooth and beautiful surface.it can be processed by plastic injection molding machine ,mold comporession molding machine and multi-station Pla-stic injection molding machine.
- electrical insulation:it's suitable for electrical products with high voltage resistance,dielectric property,high insulation and are resistance.
-high corrosion resistance:it's suitable for plastic such as specimen andbaffle plate of various projects.
-flame resistance performance:coming up to american UL-94Vo level.
-heat resistance performance:no heat crack happens under very high thermal deformation temperature(22-260℃)
component list

Controller Arcuchi/Porchesion(50-290T)(China)
  Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
  HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)


Main technical parameters



SPECIFICATION HJ-240U
  A B
Screw diameter mm 55 60
Shot size(theoretical) cm³ 730 780
Injection weight g 800 850
Injection pressure Mpa 180 150
Injection rate g/s 148 179
Plasticizing Capacity g/s 31 37
Clamp tonnage KN 2400
Opening stroke mm 470
Mold height mm 150-480
Space between the tie bars mm 520*520
Ejector stroke mm 135
Ejector tonnage KN 70
Max.pump pressure Mpa 16
Pump motor power KW 18.5
Heater power KW 6
Machine dimension(L*W*H) M 5.4*1.5*2
Machine weight T 6.5
Hopper capacity L 340
Oil tank capacity L 330




Characteristics

1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.

Shipping and Payment


Product Name BMC Injection  molding machine
Packing Export standard package
MOQ 1 set
FOB price Please contact for new price
Delivery time 25-60days
FOB port Ningbo
Payment terms T/T,L/C at sight
