    Super Big Plastic Injection Molding Machine 3000 Ton With Servo System

    Product Details:

    Place of Origin: China
    Brand Name: HAIJIANG
    Certification: ISO9001
    Model Number: HJF3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: /
    Packaging Details: Export Standard
    Delivery Time: 25-60 days
    Payment Terms: TT, L/C
    Supply Ability: 500sets/month
    Get Best Price Contact Now

    Detail Information

    Shot Weight: 39953grams Machine Weight: 220tons
    Machine Dimension: 22*5.5*5M Oil Tank: 4500L
    Space Between The Tie Bar: 1900*1750
    High Light:

    plastic products making machine

    ,

    bakelite injection molding machine

    ,

    horizontal injection molding machine

    Product Description

    Super Big Plastic Injection Molding Machine 3000 Ton With Servo System

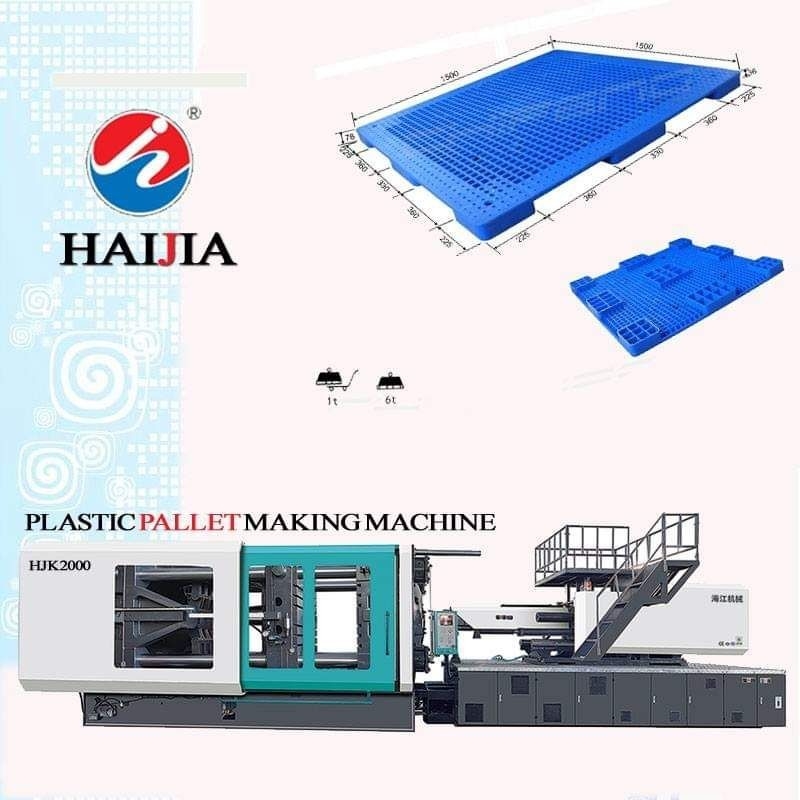

    3000ton super big plastic pallet injection molding machine with servo system



    Centralized lubrication system
     Low pressure mould protection device
     Mechanical safety interlock
     Double electrical safety interlock
     Oil return filter



    home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
    Machine main components adopt world famous brand, e.g.:


    Controller Arcuchi/Porchesion(50-290T)(China)
      Techmation(360-3000T)(Taiwan)
    Vane pump Albert(USA)
    Proportional valve HJK series Northman(TAIWAN)
      HJK series Northman(TAIWAN) or TOKIMEC(Japan)
    Directional valve HNC(TAIWAN) or YUKEN(Japan)
    Electric motor Dongguan(Guangdong)
    contactor Mager(50-290T)/Schneider(China)(360-3000T)
    High pressure hose Fute(Ningbo)
    Five-star hydrauhu Dandun(China)STAFFA(UK)
    Air breaker LS(Korea)
    Thermal overland relay Schneider(China)
    Limit switch Omoron(Japan)
    Lubrication pump Automatic
    Servo motor SUMITOMO(Japan)
    Servo pump DELTA(Taiwan)
    Servo sensor ASHCROFT(Germany)



    Main technical parameters



    SPECIFICATION HJF-1660
      A B C D
    Screw diameter mm 120 130 140 150
    Screw L/D Ration L/D 25.4 23.4 21.7 18.9
    Shot size(theoretical) cm³ 7368 8759 10159 11662
    Injection weight(PS) g 6704 7970 9244 10612
    Injection rate g/s 1056 1240 1438 1650
    Injection pressure Mpa 195 165 145 126
    Screw speed rpm 85
    Clamping tonnage KN 16600
    Opening stroke mm 1550
    Space between the tie bars mm 1500*1400
    Max.mold height mm 1500
    Min.mold height mm 700
    Ejector stroke mm 420
    Ejector tonnage KN 420
    Max.pump pressure Mpa 17.5
    Pump motor power KW 45+45+45
    Heater power KW 94.9
    Machine dimension(L*W*H) M 16.35*3.15*4.17
    Machine weight T 125
    Oil tank capacity L 3000



    SPECIFICATION HJF-2000
      A B C D
    Screw diameter mm 130 140 150 160
    Screw L/D Ration L/D 25.9 24 22.4 20.9
    Shot size(theoretical) cm³ 9460 11238 12900 14678
    Injection weight(PS) g 8608 10226 11739 13356
    Injection rate g/s 1172 1360 1560 1776
    Injection pressure Mpa 190 163 142 125
    Screw speed rpm 70
    Clamping tonnage KN 20000
    Opening stroke mm 1600
    Space between the tie bars mm 1650*1500
    Max.mold height mm 1620
    Min.mold height mm 800
    Ejector stroke mm 420
    Ejector tonnage KN 490
    Max.pump pressure Mpa 16.5
    Pump motor power KW 45+55+55
    Heater power KW 110.7
    Machine dimension(L*W*H) M 17.8*3.35*4.28
    Machine weight T 156
    Oil tank capacity L

    3700



    SPECIFICATION HJF-3000
      A B

    C

    D

    Screw diameter mm 180 210 220
    Screw L/D Ration L/D 24 24 22.9
    Shot size(theoretical) cm³ 29390 40003 43904
    Injection weight(PS) g 26745 36402 39953
    Injection rate g/s 1468 2000 2200
    Injection pressure Mpa 210 155 141
    Screw speed rpm 50
    Clamping tonnage KN 30000
    Opening stroke mm 2000
    Space between the tie bars mm 1900*1750
    Max.mold height mm 1900
    Min.mold height mm 1000
    Ejector stroke mm 450
    Ejector tonnage KN 565
    Max.pump pressure Mpa 16
    Pump motor power KW 55+55+55+55
    Heater power KW 177
    Machine dimension(L*W*H) M 22*5.5*5
    Machine weight T 220
    Oil tank capacity L 4500

    Characteristics



    Adjustment Unit

    Automatic mold height adjustment saves the time and cost during the mold changing.

    Clamping Unit

    The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

    Hydraulic Unit

    The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

    Injection Unit

    Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

    Electronically Controlled Unit

    1. CPU controller and display are independent and reliable.

    2. A larger color LCD screen enhances clear display and support multi-language compatibility.

    3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

    4. A screen saver function extends the LCD life.

    5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

    6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

    7. Closed loop PID barrel temperature control.

    8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.



    Shipping and Payment



    Product Name 138 Injection  molding machine
    Packing Export standard package
    MOQ 1 set
    FOB price Please contact for new price
    Delivery time 25-60days
    FOB port Ningbo
    Payment terms T/T,L/C at sight



    SPARE PARTS(FOR FREE)

    1.mold clamping with bolts:8pcs 2.Nozzle:1pc
    3.Toolbox:1set 4.heating ring:2pcs
    5.lubrication oil:1 bucket 6.limit switch:2pcs
    7.hexagon wrench:1set 8.thermocouple:2pcs
    9.seal ring:2pcs 10.machine foot pad:6pcs
    11.vise:1pc 12.power socket for auxiliary machine:2pcs
    13.wrench:1pc 14.screwdriver:2pcs
