360 Ton Plastic Injection Molding Machine Plastic Bucket Production Line

China 360 Ton Plastic Injection Molding Machine Plastic Bucket Production Line supplier

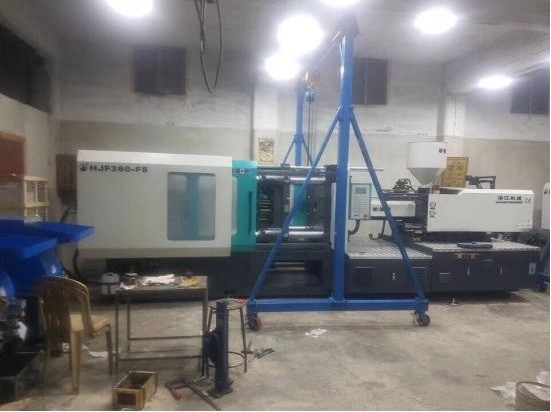

Large Image :  360 Ton Plastic Injection Molding Machine Plastic Bucket Production Line

Product Details:

Place of Origin: China
Brand Name: HAIJIANG
Certification: ISO9001
Model Number: HJF360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: /
Packaging Details: Export Standard
Delivery Time: 20-25 days
Payment Terms: TT, L/C
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Shot Weight: 1180grams Machine Dimension: 6.3*1.9*2.4M
Oil Tank: 620L Space Between The Tie Bar: 680*680MM
Pump Motor Power: 12kw Screw Speed: 0-180 Rpm


360 ton plastic bucket production line injection molding machine
 Low pressure mould protection device
 Mechanical safety interlock
 Double electrical safety interlock
Oil return filter
 Oil tank with inner stainless steel container

home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
Machine main components adopt world famous brand, e.g.:

ControllerArcuchi/Porchesion(50-290T)(China)
 Techmation(360-3000T)(Taiwan)
Vane pumpAlbert(USA)
Proportional valveHJK series Northman(TAIWAN)
 HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valveHNC(TAIWAN) or YUKEN(Japan)
Electric motorDongguan(Guangdong)
contactorMager(50-290T)/Schneider(China)(360-3000T)
High pressure hoseFute(Ningbo)
Five-star hydrauhuDandun(China)STAFFA(UK)
Air breakerLS(Korea)
Thermal overland relaySchneider(China)
Limit switchOmoron(Japan)
Lubrication pumpAutomatic
Servo motorSUMITOMO(Japan)
Servo pumpDELTA(Taiwan)
Servo sensorASHCROFT(Germany)


Main technical parameters


SPECIFICATIONHJF-360
 ABCD
Screw diametermm60657075
Screw L/D RationL/D22.621.219.418.5
Shot size(theoretical)cm³960112813061480
Injection weight(PS)g873102611801346
Injection rateg/s239275328420
Injection pressureMpa213183160146
Screw speedrpm0-180
Clamping tonnageKN3600
Opening strokemm700
Space between the tie barsmm680*680
Max.mold heightmm670
Min.mold heightmm240
Ejector strokemm160
Ejector tonnageKN62
Max.pump pressureMpa16
Pump motor powerKW37
Heater powerKW17.25
Machine dimension(L*W*H)M6.3*1.9*2.4
Machine weightT12
Oil tank capacityL620


Characteristics

Adjustment Unit
Automatic mold height adjustment saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.

SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs2.Nozzle:1pc
3.Toolbox:1set4.heating ring:2pcs
5.lubrication oil:1 bucket6.limit switch:2pcs
7.hexagon wrench:1set8.thermocouple:2pcs
9.seal ring:2pcs10.machine foot pad:6pcs
11.vise:1pc12.power socket for auxiliary machine:2pcs
13.wrench:1pc14.screwdriver:2pcs
