    Home Appliance Plastic Injection Molding Machine Plastic Chicken Feeder 360 Ton

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: /
    Packaging Details: Export Standard
    Delivery Time: 25-60 days
    Payment Terms: TT, L/C
    Supply Ability: 500sets/month
    Get Best Price Contact Now

    Detail Information

    Shot Weight: 1888grams Machine Weight: 14.5tons
    Machine Dimension: 7*1.9*2.4M Space Between The Tie Bar: 725*725
    High Light:

    plastic products making machine

    ,

    bakelite injection molding machine

    ,

    horizontal injection molding machine

    Product Description

    Home Appliance Plastic Injection Molding Machine Plastic Chicken Feeder 360 Ton





    different size plastic chicken feeder 360ton inejction molding machine



     Mechanical safety interlock
    Double electrical safety interlock
     Oil return filter
     Oil tank with inner stainless steel container




     Multiple hydraulic ejection
     Differential high speed clamping
     Centralized lubrication system
     Low pressure mould protection device
     Mechanical safety interlock



    home appliance injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages
    Machine main components adopt world famous brand, e.g.:


    Controller Arcuchi/Porchesion(50-290T)(China)
      Techmation(360-3000T)(Taiwan)
    Vane pump Albert(USA)
    Proportional valve HJK series Northman(TAIWAN)
      HJK series Northman(TAIWAN) or TOKIMEC(Japan)
    Directional valve HNC(TAIWAN) or YUKEN(Japan)
    Electric motor Dongguan(Guangdong)
    contactor Mager(50-290T)/Schneider(China)(360-3000T)
    High pressure hose Fute(Ningbo)
    Five-star hydrauhu Dandun(China)STAFFA(UK)
    Air breaker LS(Korea)
    Thermal overland relay Schneider(China)
    Limit switch Omoron(Japan)
    Lubrication pump Automatic
    Servo motor SUMITOMO(Japan)
    Servo pump DELTA(Taiwan)
    Servo sensor ASHCROFT(Germany)



    Main technical parameters



    SPECIFICATION HJF-400
      A B C

    D

    FPR FRUIT BASKET

    Screw diameter mm 70 75 80 85
    Screw L/D Ration L/D 22 20.5 19.25 17.8
    Shot size(theoretical) cm³ 1384 1589 1808 2098
    Injection weight(PS) g 1246 1430 1627 1888
    Injection rate g/s 382 438 499 530
    Injection pressure Mpa 200 174 155 130
    Screw speed rpm 0-160
    Clamping tonnage KN 4000
    Opening stroke mm 745
    Space between the tie bars mm 725*725
    Max.mold height mm 810
    Min.mold height mm 280
    Ejector stroke mm 170
    Ejector tonnage KN 110
    Max.pump pressure Mpa 16
    Pump motor power KW 37
    Heater power KW 20
    Machine dimension(L*W*H) M 7*1.9*2.4
    Machine weight T 14.5
    Oil tank capacity L 950



    Characteristics



    Adjustment Unit

    Automatic mold height adjustment saves the time and cost during the mold changing.

    Clamping Unit

    The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effects.

    Hydraulic Unit

    The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.

    Injection Unit

    Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.Specific screw and barrel designs are available for processing different material requirements.

    Electronically Controlled Unit

    1. CPU controller and display are independent and reliable.

    2. A larger color LCD screen enhances clear display and support multi-language compatibility.

    3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

    4. A screen saver function extends the LCD life.

    5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

    6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

    7. Closed loop PID barrel temperature control.

    8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.



    Shipping and Payment



    Product Name 138 Injection  molding machine
    Packing Export standard package
    MOQ 1 set
    FOB price Please contact for new price
    Delivery time 25-60days
    FOB port Ningbo
    Payment terms T/T,L/C at sight



    SPARE PARTS(FOR FREE)

    1.mold clamping with bolts:8pcs 2.Nozzle:1pc
    3.Toolbox:1set 4.heating ring:2pcs
    5.lubrication oil:1 bucket 6.limit switch:2pcs
    7.hexagon wrench:1set 8.thermocouple:2pcs
    9.seal ring:2pcs 10.machine foot pad:6pcs
    11.vise:1pc 12.power socket for auxiliary machine:2pcs
    13.wrench:1pc 14.screwdriver:2pcs

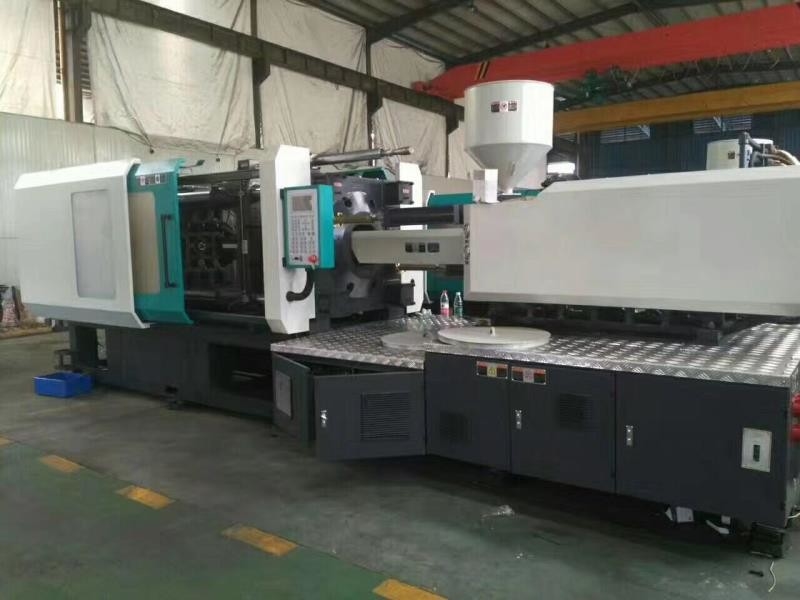

    Home Appliance Plastic Injection Molding Machine Plastic Chicken Feeder 360 Ton 0
