• Waterproof Servo Injection Molding Machine 180 Tons Energy Saving ISO9001
Waterproof Servo Injection Molding Machine 180 Tons Energy Saving ISO9001

Waterproof Servo Injection Molding Machine 180 Tons Energy Saving ISO9001

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$20,000/setSET
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weight: 274~388 Inhection Rate: 108~158
Clamp Tonnage: 1800 Toggle Stroke: 430
Space Between Tie Bar: 470*470 Machine Dimension: 5.1*1.4*1.9
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description

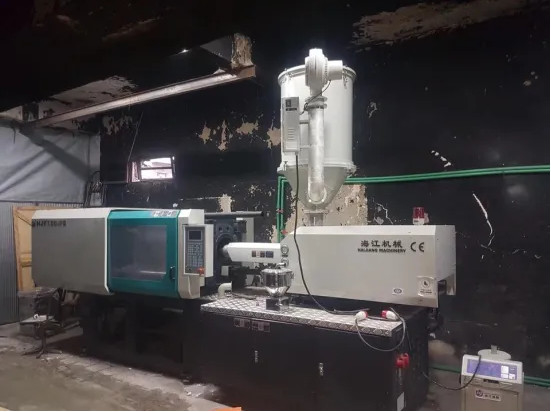

                                     180 ton servo injection molding machine
Control part:
1.It adopts imported computer for plastic injection machine , with large screen .High definiyion crystal display and human-computer interface in different languages.Through CPU independent control and individual treatment.It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.

2.Closed loop temperature control system to ensure the accuracy and reliability of the barrel temperature .The functions of cold proof boot, alarming and parameter memory for the molding, with password protection.The injection and switch are controlled by imported ruler.



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.


SPECIFICATION HJF180
Screw Type A B C
Screw Diameter Mm 42 45 50
Screw L/D Ration L/D 22.5 20 18.8
Shot Size(Theoretical) cm3 304 349 431
Injection Weight(PS) g 274 314 388
Injection Rate g/s 108 128 158
Injection Pressure MPa 202 159 140
Screw Speed rpm 0~185
Clamping Force KN 1800
Opening stroke Mm 450
Space Between Tie Bars mm 480*480
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector Stroke mm 130
Ejector Tonnage KN 45
Max.Pump Pressure MPa 16
Pump Motor Power KW 15
Heater power KW 7.5
Machine Dimension(L*W*H) M 5.1*1.4*1.9
Machine weight T 5.5
Oil Tank Capacity L 240


Haijiang Machinery Main configuration

Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)


Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
