240 Ton Auto Injection Molding Machine Plastic Fingernails Cap Making

Machine quality is good, i have two small size machine

—— Farrukh Jawaid

I'm Online Chat Now

240 Ton Auto Injection Molding Machine Plastic Fingernails Cap Making

China 240 Ton Auto Injection Molding Machine Plastic Fingernails Cap Making supplier

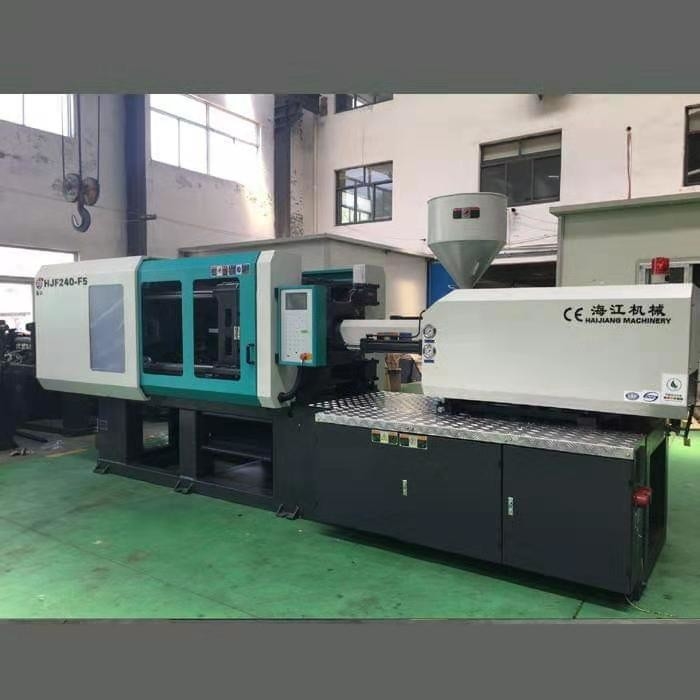

Large Image :  240 Ton Auto Injection Molding Machine Plastic Fingernails Cap Making

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF240

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$25,000/setSET
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Injection Weight: 462~642 Injection Rate: 148~202
Clamp Tonnage: 2400 Toggle Stroke: 490
Space Between Tie Bar: 530*510 Machine Dimension: 5.4*1.5*2m



Injection Molding Machine HJF240





SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well.



HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports Multi language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.



SPECIFICATION HJF240
Screw Type A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamping Force KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340



Haijiang Machinery Main configuration



Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)



Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
