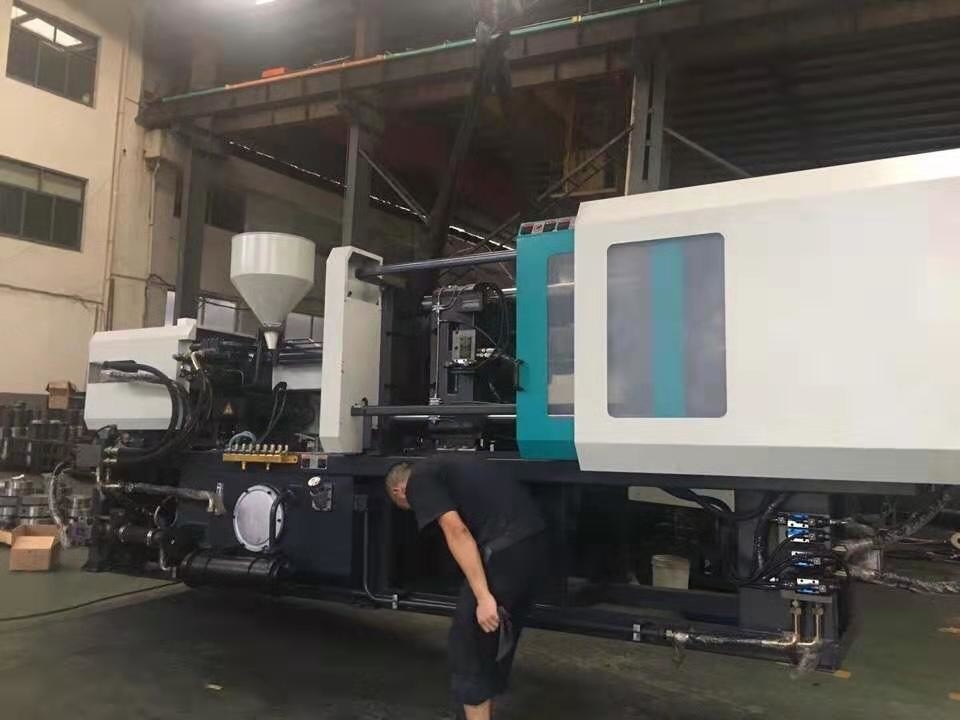

Central Clamping Structure 780 Ton Auto Injection Molding Machine With Intellectual Control Unit

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF780

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$108,000/setSET
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Get Best Price Contact Now

Detail Information

Injection Weigjt: 2632~3932 Injection Rate: 574~858
Clamp Tonnage: 7800 Toggle Stroke: 950
Space Between Tie Bar: 470*470 Machine Dimension: 5.1*1.4*1.9m
High Light:

pvc pipe fitting injection molding machine

,

servo motor injection molding machine

,

hydraulic plastic injection moulding machine

Product Description



 servo Injection Molding Machine HJF780

Features of injection molding machine:
1.Equiped with servo motor ,
2.Closed loop control for pressure and flow .
3.Low noise,
4.High precision
5.Energy saving .



HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price

Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.



SPECIFICATION HJF780
Screw Type A B C D
Screw Diameter Mm 90 95 105 110
Screw L/D Ration L/D 23.2 22 19.9 19
Shot Size(Theoretical) cm3 2924 3258 3981 4369
Injection Weight(PS) g 2632 2933 3583 3932
Injection Rate g/s 574 640 781 858
Injection Pressure MPa 195 175 143 130
Screw Speed rpm 115
Clamping Force KN 7800
Opening stroke Mm 950
Space Between Tie Bars mm 980*980
Max.Mold Height mm 960
Min.Mold Height mm 400
Ejector Stroke mm 280
Ejector Tonnage KN 186
Max.Pump Pressure MPa 16
Pump Motor Power KW 37+30
Heater power KW 56.7
Machine Dimension(L*W*H) M 11.43*2.40*3.14
Machine weight T 37
Oil Tank Capacity L 1500



Haijiang Machinery Main configuration

Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)


Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
