200 Ton Injection Plastic Molding Machine High Precision Low Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export standard |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
|
Detail Information |
|||
| Injection Weight: | 314~470 | Injection Rate: | 136~185 |
|---|---|---|---|
| Clamp Tonnage: | 2000 | Toggle Stroke: | 450 |
| Space Between Tie Bar: | 500*470 | Machine Dimension: | 5.3*1.4*1.9m |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine,hydraulic plastic injection moulding machine |
||
Product Description

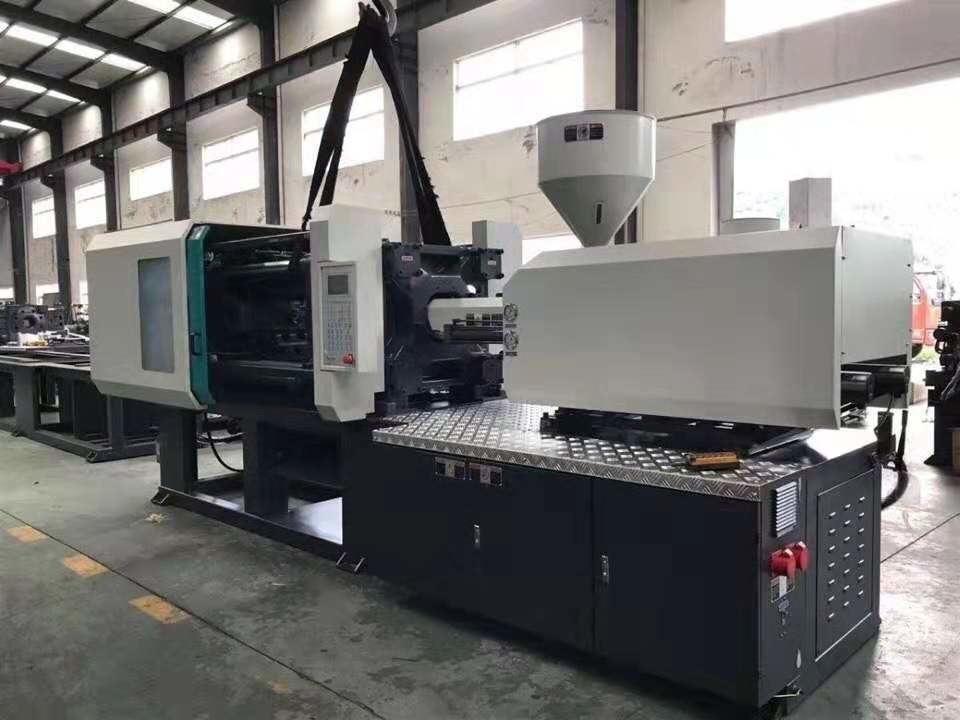

HJF200 ton injection molding machine
Servo series Low consumption and environment-friendly:
1). Economizing on electricity: Electric motor energy is carried out according to need. For high-precision products with long holding time and thick wall thickness, energy electricity can be economized 25%-80%.
2). Precision: Products re-precision is once higher than usual injection molding machine.
3). Control: Double closed circular control makes the pressure and speed equaler.
4). Economizing on water: The cooling water can be economized greatly when the surrounding temperature is below 30 degrees.
5). Low noise: The noise is very low during the non-high-pressure situation.
Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
| SPECIFICATION | HJF200 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 45 | 50 | 55 |
| Screw L/D Ration | L/D | 20 | 18.8 | 18.8 |
| Shot Size(Theoretical) | cm3 | 349 | 431 | 522 |
| Injection Weight(PS) | g | 314 | 388 | 470 |
| Injection Rate | g/s | 136 | 170 | 185 |
| Injection Pressure | MPa | 220 | 180 | 150 |
| Screw Speed | rpm | 0~185 | ||
| Clamping Force | KN | 2000 | ||
| Opening stroke | Mm | 450 | ||
| Space Between Tie Bars | mm | 500*470 | ||
| Max.Mold Height | mm | 500 | ||
| Min.Mold Height | mm | 180 | ||
| Ejector Stroke | mm | 130 | ||
| Ejector Tonnage | KN | 45 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater power | KW | 7.5 | ||
| Machine Dimension(L*W*H) | M | 5.3*1.4*1.9 | ||
| Machine weight | T | 5.8 | ||
| Oil Tank Capacity | L | 240 | ||
Haijiang Machinery Main configuration
Standard machinery
| PLC | PORCHESON (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | LS (KOREA) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
