650 Ton Servo Motor Plastic Mould Making Machine High Precision Low Noise

China 650 Ton Servo Motor Plastic Mould Making Machine High Precision Low Noise supplier

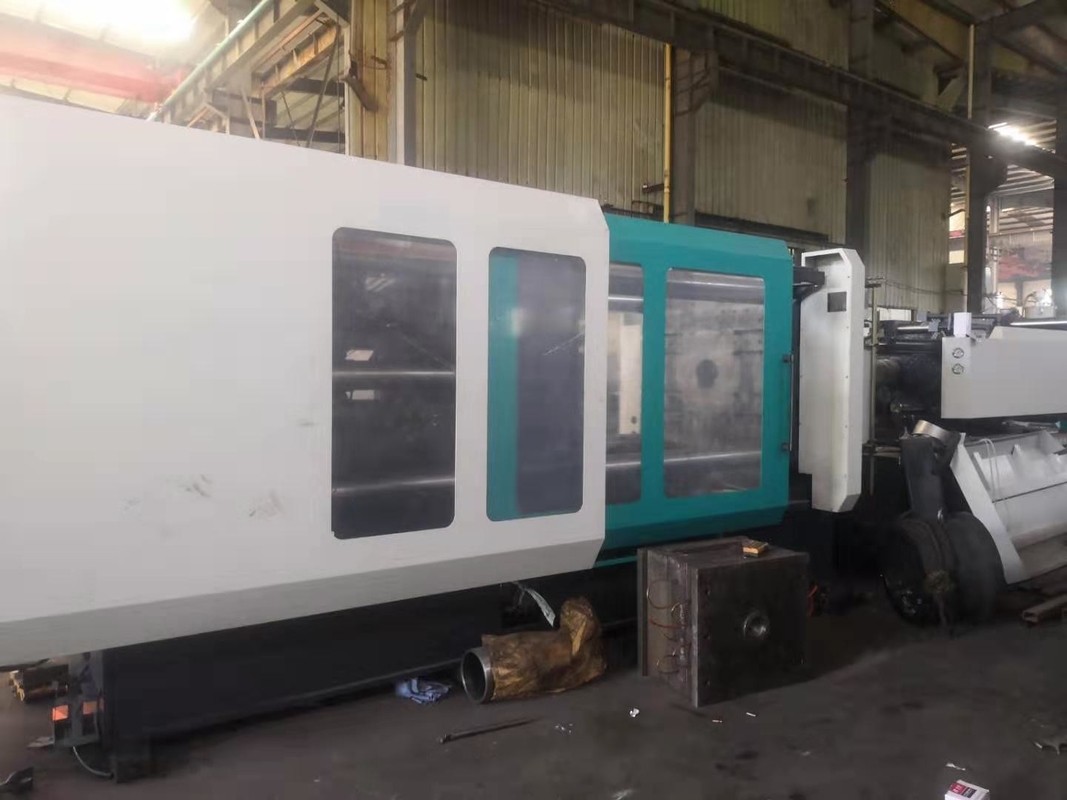

Large Image :  650 Ton Servo Motor Plastic Mould Making Machine High Precision Low Noise

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF650

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Injection Weight: 2517~3427 Injection Rate: 552~748
Clamp Tonnage: 6500 Toggle Stroke: 870
Space Between Tie Bar: 875*875 Machine Dimension: 10.2*2.24*2.71m

                                  HJF 650 ton injection molding machine


Introduction:

1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .Low noise,high precision and energy saving .

We design,manuafcture and supply our own brand of injection molding machine called "Haijiang" with clamping force ranged from 800kn to 30000kn, injection weight from 90g to 40000g, and can provide custom-built machine.



2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC



Features of injection molding machine:
1.Equiped with servo motor ,

2.Closed loop control for pressure and flow .

3.Low noise,

4.High precision

5.Energy saving .


Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

SPECIFICATION HJF650
Screw Type A B C D
Screw Diameter Mm 90 95 100 105
Screw L/D Ration L/D 20 19 18 17.1
Shot Size(Theoretical) cm3 2800 3117 3454 3808
Injection Weight(PS) g 2517 2805 3108 3427
Injection Rate g/s 552 612 679 748
Injection Pressure MPa 184 165 149 135
Screw Speed rpm 150
Clamping Force KN 6500
Opening stroke Mm 890
Space Between Tie Bars mm 890*890
Max.Mold Height mm 900
Min.Mold Height mm 350
Ejector Stroke mm 250
Ejector Tonnage KN 150
Max.Pump Pressure MPa 16
Pump Motor Power KW 55
Heater power KW 42.95
Machine Dimension(L*W*H) M 10.2*2.24*2.71
Machine weight T 28
Oil Tank Capacity L 1300


Haijiang Machinery Main configuration
Standard machinery

PLC TECHMATION (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Yuken(JAPAN)/Tokimec(JAPAN)/Vickers(USA)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor Schneider(France)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)/Schneider(France)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)

Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Yuken(JAPAN)/Tokimec(JAPAN)/Vickers(USA)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)
