Horizontal Standard 1000 Ton Injection Molding Machine Servo Energy Saving

China Horizontal Standard 1000 Ton Injection Molding Machine Servo Energy Saving supplier

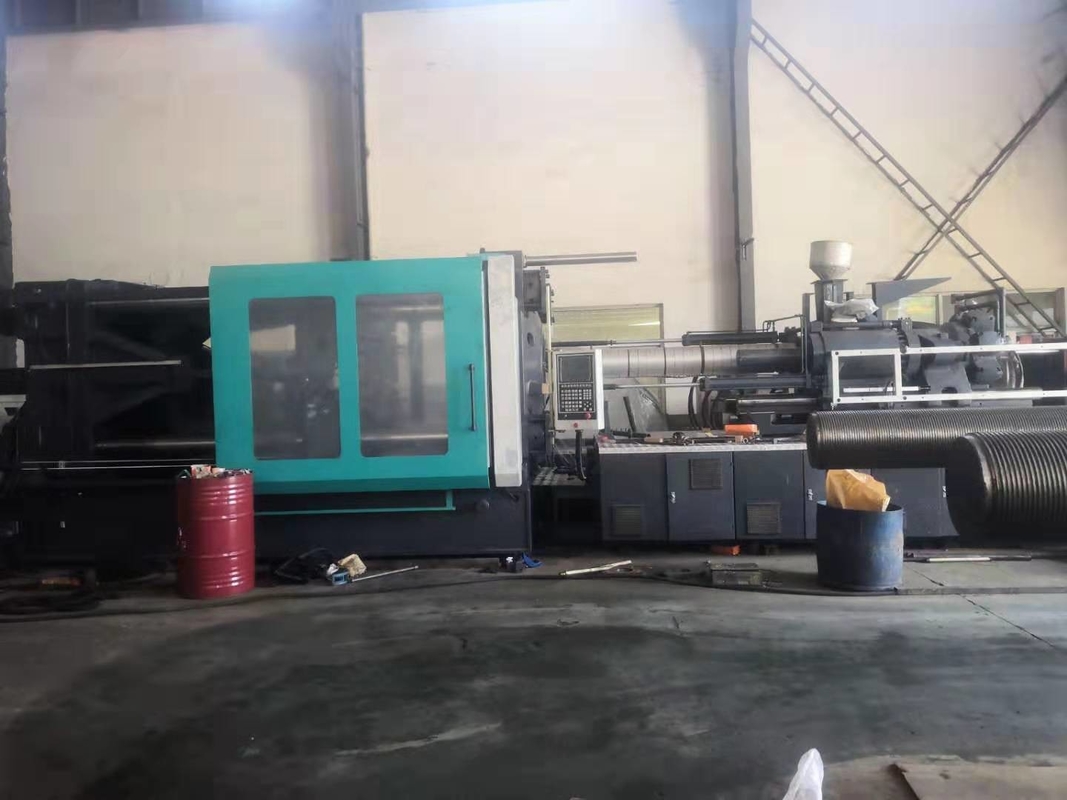

Large Image :  Horizontal Standard 1000 Ton Injection Molding Machine Servo Energy Saving

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 3sets/month
Contact Now
Detailed Product Description
Injection Weight: 3251~5629 Clamp Tonnage: 10000
Toggle Stroke: 1100 Space Between Tie Bars: 1120*1020
Machine Dimension: 12*2.8*3.14 Machine Weight: 45

                                     HJF-1000 injection molding machine with servo



Features of injection molding machine:
1.Equiped with servo motor ,

2.Closed loop control for pressure and flow .

3.Low noise,

4.High precision

5.Energy saving .



Servo Controller Part:
1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJ series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency
5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving





HAIJIANG plastic parts injection machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price




SPECIFICATION HJF-1000
  A B C

D



Screw diameter mm 95 105 115 125
Screw L/D Ratio L/D 23 22 20 18.6
Shot size(theoretical) cm³ 3613 4413 5294 6255
Injection weight(PS) g 3251 3972 4765 5629
Injection pressure Mpa 210 162 133 120
Injection rate g/s 580 708 850 930
Screw Speed rpm 115
Clamp tonnage KN 10000
Opening stroke mm 1100
Space between the tie bars mm 1120*1120
Max.Mold Height mm 1100
Min.Mold Height mm 500
Ejector stroke mm 350
Ejector tonnage KN 200
Max.pump pressure Mpa 16
Pump motor power KW 45+45
Heater power KW 58
Machine dimension(L*W*H) M 12*2.8*3.14
Machine weight T 45
Oil tank capacity L 1800





Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)



SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs
