High Precision Plastic Mold Making Machine 200 Ton With Low Consumption

China High Precision Plastic Mold Making Machine 200 Ton With Low Consumption supplier

Large Image :  High Precision Plastic Mold Making Machine 200 Ton With Low Consumption

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Injection Weight: 314~470 Injection Rate: 136~185
Clamp Tonnage: 2000 Toggle Stroke: 450
Space Between Tie Bar: 500*470 Machine Dimension: 5.3*1.4*1.9m

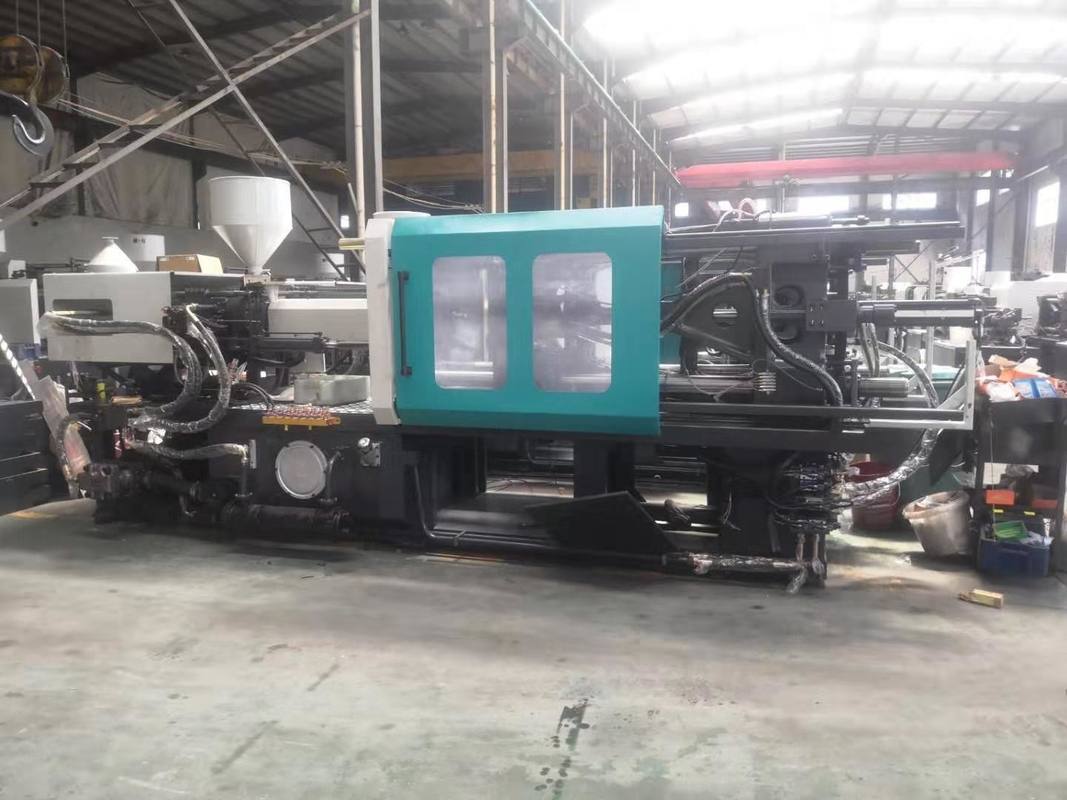

                                     HJF200 ton injection molding machine

FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.

CONTROL SYSTEM
All digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
Servo series Low consumption and environment-friendly:
1). Economizing on electricity: Electric motor energy is carried out according to need. For high-precision products with long holding time and thick wall thickness, energy electricity can be economized 25%-80%.
2). Precision: Products re-precision is once higher than usual injection molding machine.
3). Control: Double closed circular control makes the pressure and speed equaler.
4). Economizing on water: The cooling water can be economized greatly when the surrounding temperature is below 30 degrees.
5). Low noise: The noise is very low during the non-high-pressure situation.




SPECIFICATIONHJF200
Screw TypeABC
Screw DiameterMm455055
Screw L/D RationL/D2018.818.8
Shot Size(Theoretical)cm3349431522
Injection Weight(PS)g314388470
Injection Rateg/s136170185
Injection PressureMPa220180150
Screw Speedrpm0~185
Clamping ForceKN2000
Opening strokeMm450
Space Between Tie Barsmm500*470
Max.Mold Heightmm500
Min.Mold Heightmm180
Ejector Strokemm130
Ejector TonnageKN45
Max.Pump PressureMPa16
Pump Motor PowerKW18.5
Heater powerKW7.5
Machine Dimension(L*W*H)M5.3*1.4*1.9
Machine weightT5.8
Oil Tank CapacityL240


Haijiang Machinery Main configuration

Standard machinery

PLCPORCHESON (TAIWAN)
Vane PumpAlbert (USA)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional ValveHNC (TAIWAN)
Electric MotorQianlima (CHINA )
ContactorLS (KOREA)
Plasticizing Oil MotorSTF(CHINA)
Air BreakerLS (KOREA)
Thermal Overload RelayLS (KOREA)
Limit SwitchesOmoron (JAPAN )
Liner Position Sensors (Electric Ruler)Minor (China)
Lubrication PumpChaoRun(China)


Servo machinery

PLCPORCHESON (TAIWAN)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air BreakerLS (KOREA)
SSR(solid state relay)Fotek(TAIWAN)
Plasticizing Oil MotorSTF(China)
Limit SwitchesOmoron (JAPAN )
Gear PumpSUMITOMO (JAPAN)
Servo DriverDELTA (TAIWAN)
Servo SensorASHCROFT(GERMAN)
Servo MotorAlbert(USA)/Phase(ITALY)
