PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System

China PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System supplier
PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System supplier PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System supplier PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System supplier PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System supplier

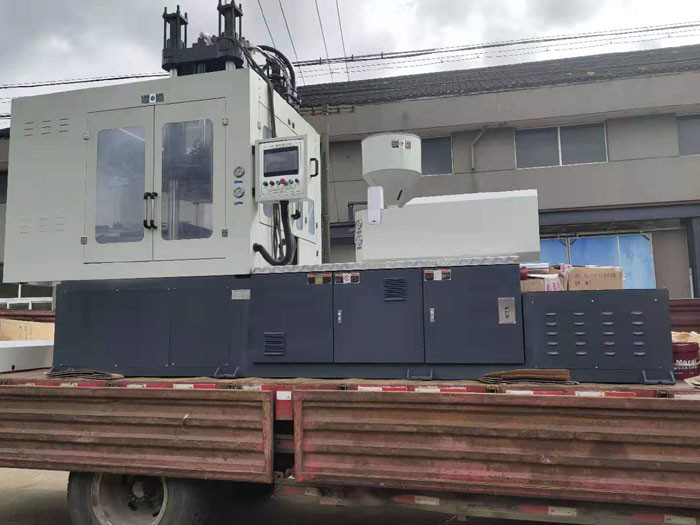

Large Image :  PE Bottle Injection Blow Moulding Machine High Speed Horizontal Injection System

Product Details:

Place of Origin: Ningbo,China
Brand Name: Haijia
Certification: ISO9001
Model Number: HF350

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Packaging Details: Wooden box
Delivery Time: 25 days
Payment Terms: USD50000/SET, L/C, D/P, T/T, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Max Bottle Diameter: 100mm Max Bottle Height: 230mm
Max Thread Diameter: 70mm Max Bottle Volume: 1.5L
Max Mould Cavities: 6 Cavties Machine Weight: 7 Tons

high speed PE bottle injection blow moulding machine





Haijia injection blow molding machine will be your best choice as The Injection Blow Molding process incorporates three basic stages: plastic is injected into a mold to create a plastic cylinder; that plastic cylinder is blown into a mold to form a hollow part; and then that form is ejected. During this process, air is used to form the hollow plastic shape by forcing the soft plastic into the mold's cavity. Though described here in simplified terms, this outlines the general method of the injection blow molding process. In injection blow molding the part is formed in an enclosed mold, there is no scrap to be trimmed from the product. The three stations of the process allow for the formation of a thick treated neck with a thin container wall

Advantages

Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency.


Advantage:

Horizontal injection system,plasticing reliable and operation easy.

Single crossbeam style clamping system,easy for mould amounting.

Variable delivery pump driving system, energy saved and efficient high.

Big mould dimension,output higher than same level machine.





Packaging & Delivery

Packaging Details: PE film, Wooden box, Wooden/Steel

Delivery Detail: Shipped in 60 days after payment Technical parameters

for mould amounting.



Variable delivery pump driving system, energy saved and efficient high.

Big mould dimension,output higher than same level machine.


No. Main parts Supplier
1 HYDRAULIC VLAVE YUKEN, TAIWAN
2 HYDRULIC MOTOR INTERMOT, ITALY
3 PNEUMATIC VALVE FESTO, GERMANY
4 HYDRAULIC PIPE ISR, CHINA
5 SEAL RING DZ, TAIWAN
6 AC CONTACTOR SCHNEIDER, CHINA
7 HYDRAULIC PUMP Piston Pump YUKEN, JAPAN
8 Control system and hand screen(supply options) JINHUA, TAIWAN
