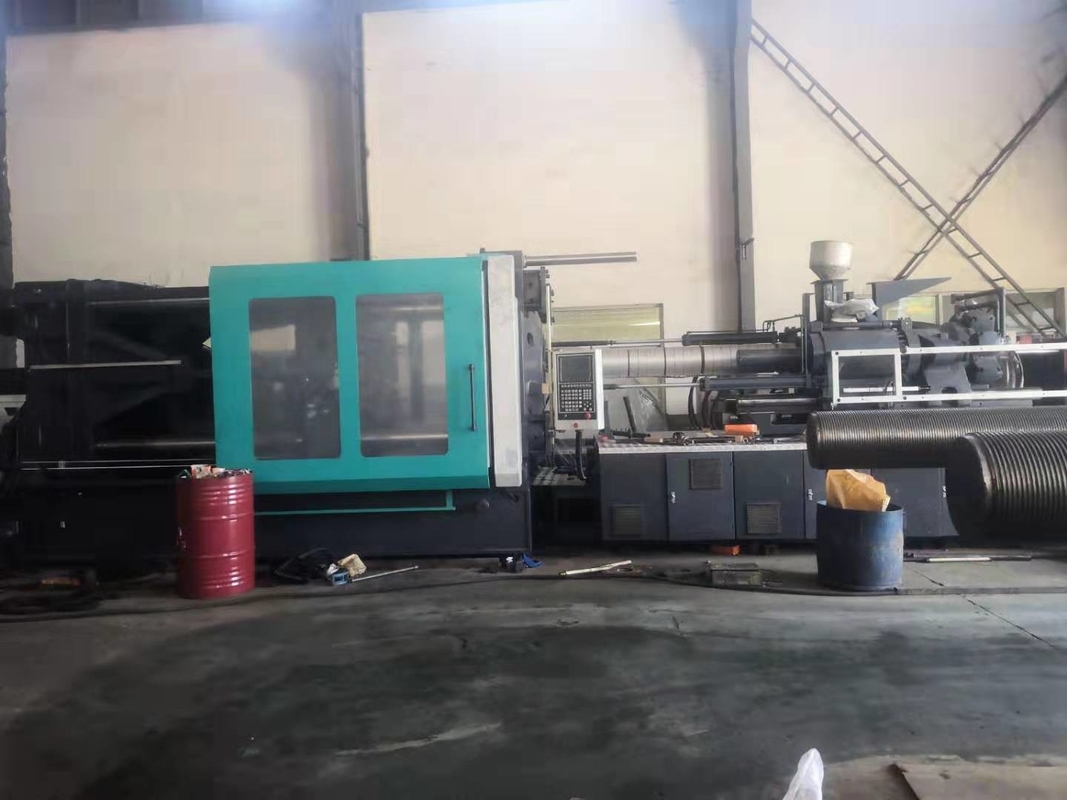

    plastic molding machine

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD$25,200/set
    Packaging Details: Export standard
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 20sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 3251~3972 Injection Rate: 580~708
    Clamp Tonnage: 10000 Toggle Stroke: 1100
    Space Between Tie Bar: 1120*1120 Machine Dimension: 12*2.8*3.14m
    High Light:

    pvc pipe fitting injection molding machine

    ,

    servo motor injection molding machine

    ,

    hydraulic plastic injection moulding machine

    Product Description

    plastic molding machine

                                                    HJF290 Injection Molding Machine



    1.It adopts imported computer for plastic injection machine , with large screen .High definiyion crystal display and human-computer interface in different languages.Through CPU independent control and individual treatment.It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.



    2.Closed loop temperature control system to ensure the accuracy and reliability of the barrel temperature .The functions of cold proof boot, alarming and parameter memory for the molding, with password protection.The injection and switch are controlled by imported ruler.



    FEATURES



    1.Equiped with servo motor ,

    2.Closed loop control for pressure and flow .

    3.Low noise,

    4.High precision

    5.Energy saving



    Electronically Controlled Unit
    1.CPU controller and display are independent and reliable.
    2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
    3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
    4.A screen saver function extends the LCD life.
    5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
    6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
    7.Closed Loop PID barrel temperature control.

    8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.





    SPECIFICATION HJF290
    Screw Type A B C
    Screw Diameter Mm 95 105 115
    Screw L/D Ration L/D 23 22 20
    Shot Size(Theoretical) cm3 3613 3972 5294
    Injection Weight(PS) g 3251 3972 4765
    Injection Rate g/s 580 708 850
    Injection Pressure MPa 210 162 133
    Screw Speed rpm 115
    Clamping Force KN 10000
    Opening stroke Mm 1100
    Space Between Tie Bars mm 1120*1020
    Max.Mold Height mm 1100
    Min.Mold Height mm 500
    Ejector Stroke mm 350
    Ejector Tonnage KN 200
    Max.Pump Pressure MPa 16
    Pump Motor Power KW 45+45
    Heater power KW 58
    Machine Dimension(L*W*H) M 12*2.8*3.14
    Machine weight T 45
    Oil Tank Capacity L 1800



    Haijiang Machinery Main configuration



    Standard machinery

    PLC PORCHESON (TAIWAN)
    Vane Pump Albert (USA)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Proportional Valve HNC (TAIWAN)
    Electric Motor Qianlima (CHINA )
    Contactor LS (KOREA)
    Plasticizing Oil Motor STF(CHINA)
    Air Breaker LS (KOREA)
    Thermal Overload Relay LS (KOREA)
    Limit Switches Omoron (JAPAN )
    Liner Position Sensors (Electric Ruler) Minor (China)
    Lubrication Pump ChaoRun(China)



    Servo machinery

    PLC PORCHESON (TAIWAN)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Air Breaker LS (KOREA)
    SSR(solid state relay) Fotek(TAIWAN)
    Plasticizing Oil Motor STF(China)
    Limit Switches Omoron (JAPAN )
    Gear Pump SUMITOMO (JAPAN)
    Servo Driver DELTA (TAIWAN)
    Servo Sensor ASHCROFT(GERMAN)
    Servo Motor Albert(USA)/Phase(ITALY)
