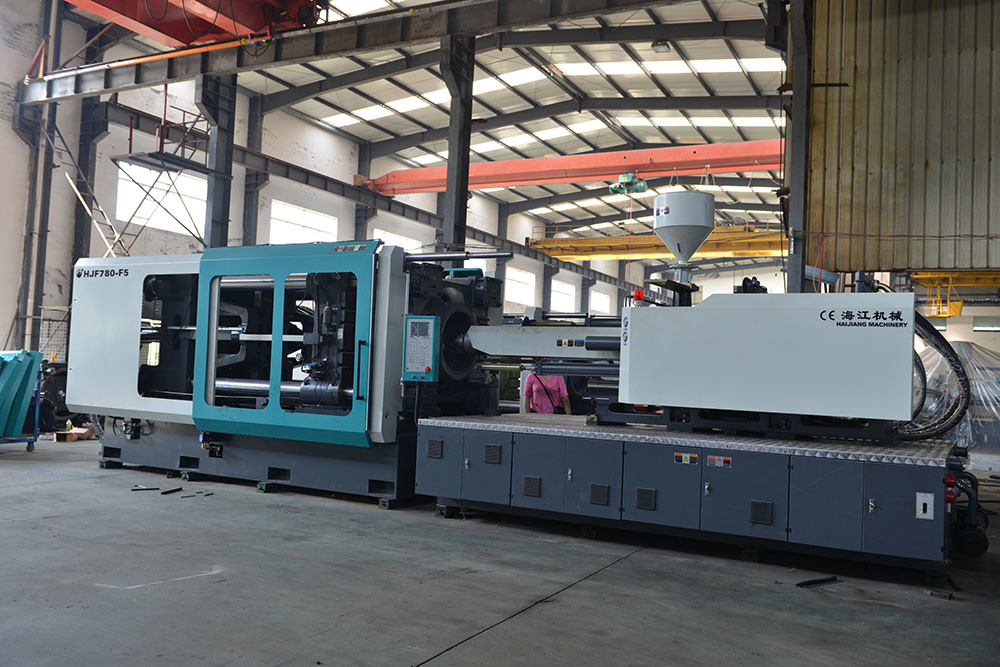

Large Image :  HJF780 Plastic Molding Machine Adjustment Unit Low Power Consumption For Chair

Product Details:

Place of Origin: China
Brand Name: taihong
Certification: ISO9001
Model Number: HJF780

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export Standard
Delivery Time: 25 days
Payment Terms: TT, L/C, Western Union
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Shot Weight300rams: 264/317/375grams Ejector Point: 5
Machine Dimension: 4.85m*1.3m*2.1m Tie Bar: 470*470mm
Table Height: 800mm Capacity: 10-15 Cartoon/min



HJF780 injection molding machine , Plastic Molding Machine , plastic machine for chair without bank



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.



Characteristics

1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.



Specification


Injection Unit UNIT A B C D
Screw diameter mm 90 95 105 110
Screw L/D ratio L/D 23.2 22 19.9 19
Shot size(theoretical) CM³ 2924 3258 3981 4369
Injection weight(ps) g 2632 2933 3583 3932
Injection rate g/s 574 640 781 858
Injection pressure Mpa 195 175 143 130
Screw speed rpm 115
Clamping Unit
Clamp tonnage KN 7800
toggle Stroke Mm 950
Space Between tie Bars mm 980*950
Max.mold height mm 960
Min.mold height mm 400
Ejector Stroke Mm 280
Ejector tonnage KN 186
Others
Max.pump pressure Mpa 16
Pump motor power KW 37+30
Heater power kw 56.7
Machine size(L x W x H) m 11.43*2.4*3.14
Machine weight Ton 37
Oil tank capacity L 1500
