Payment & Shipping Terms:
|Shot Weight300rams:||264/317/375grams||Ejector Point:||5|
|Machine Dimension:||4.85m*1.3m*2.1m||Tie Bar:||470*470mm|
|Table Height:||800mm||Capacity:||10-15 Cartoon/min|

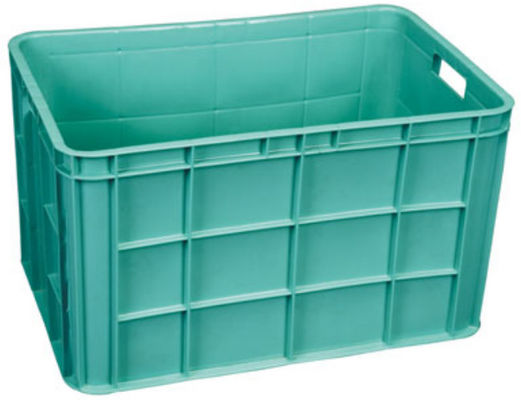

605*39*355mm crate machine , Horizontal Injection Molding Machine , crate machine for fish seafood
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
|Screw L/D ratio||L/D||23.2||22||19.9||19|
|Space Between tie Bars||mm||980*950|
|Pump motor power||KW||37+30|
|Machine size(L x W x H)||m||11.43*2.4*3.14|
|Oil tank capacity||L||1500|
1.How to choose injection molding machine?
The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.
2.How to pay?
30% deposit T/T in advance, the balance 70% payment by T/T before delivery (we accept payment by T/T, L/C etc.)
3.Is that possible for your company to send engineer to install machine for commissioning, even train our workers?
Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.
4.If we buy your machines, is there any warranty?
Yes, definitely. Totally 24-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 24-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
5.What is different with A,B,C screw, What is the price different?
The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.
