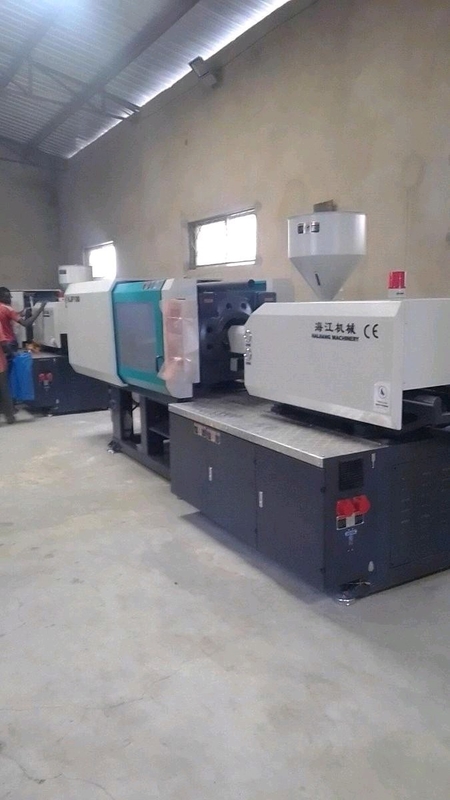

118 Ton Auto Injection Molding Machine High Precision Control 340 Toggle Stroke

Machine quality is good, i have two small size machine

—— Farrukh Jawaid

I'm Online Chat Now

118 Ton Auto Injection Molding Machine High Precision Control 340 Toggle Stroke

China 118 Ton Auto Injection Molding Machine High Precision Control 340 Toggle Stroke supplier

Large Image :  118 Ton Auto Injection Molding Machine High Precision Control 340 Toggle Stroke

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF118

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Injection Weight: 141~183 Injection Rate: 80~105
Clamp Tonnage: 1180 Toggle Stroke: 340
Space Between Tie Bar: 370*370 Machine Dimension: 4.2*1.25*1.8m

                                  118ton servo injection molding machine

- Imported advanced computer systems, Chinese / English interface.
- Can save 50 sets of mold parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- Quality:18 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)

Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.


SPECIFICATIONHJF118
Screw TypeABC
Screw DiameterMm353840
Screw L/D RationL/D23.92220.9
Shot Size(Theoretical)cm3154181201
Injection Weight(PS)g141165183
Injection Rateg/s8095105
Injection PressureMPa219186167
Screw Speedrpm0~220
Clamping ForceKN1180
Opening strokemm340
Space Between Tie Barsmm370*370
Max.Mold Heightmm400
Min.Mold Heightmm150
Ejector Strokemm100
Ejector TonnageKN33
Max.Pump PressureMPa16
Pump Motor PowerKW11
Heater powerKW6.5
Machine Dimension(L*W*H)M4.2*1.25*1.8
Machine weightT3.5
Oil Tank CapacityL210


Haijiang Machinery Main configuration

Standard machinery

PLCPORCHESON (TAIWAN)
Vane PumpAlbert (USA)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional ValveHNC (TAIWAN)
Electric MotorQianlima (CHINA )
ContactorLS (KOREA)
Plasticizing Oil MotorSTF(CHINA)
Air BreakerLS (KOREA)
Thermal Overload RelayLS (KOREA)
Limit SwitchesOmoron (JAPAN )
Liner Position Sensors (Electric Ruler)Minor (China)
Lubrication PumpChaoRun(China)



Servo machinery

PLCPORCHESON (TAIWAN)
Directional ValveNorthman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air BreakerLS (KOREA)
SSR(solid state relay)Fotek(TAIWAN)
Plasticizing Oil MotorSTF(China)
Limit SwitchesOmoron (JAPAN )
Gear PumpSUMITOMO (JAPAN)
Servo DriverDELTA (TAIWAN)
Servo SensorASHCROFT(GERMAN)
Servo MotorAlbert(USA)/Phase(ITALY)
