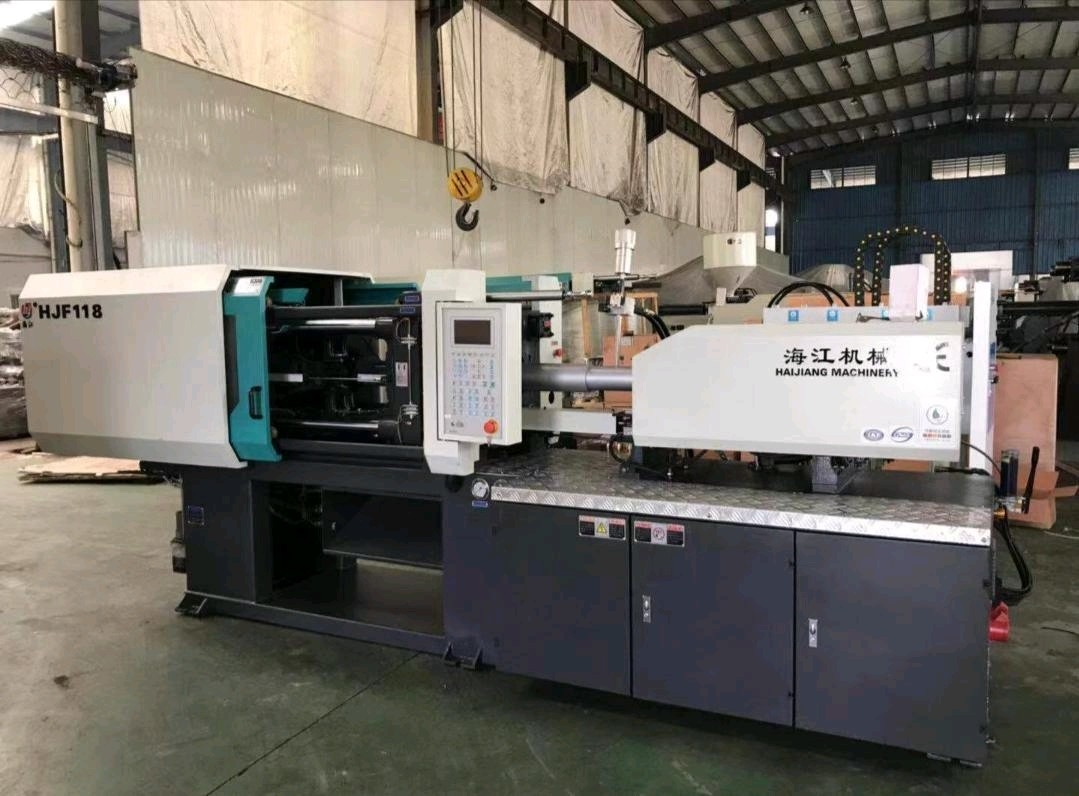

118 Ton Servo Auto Injection Molding Machine With Intellectual Control Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | Taihong |
| Certification: | ISO9001 |
| Model Number: | HJF118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export standard |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/month |
|
Detail Information |
|||
| Injection Weight: | 141~183 | Injection Rate: | 80~105 |
|---|---|---|---|
| Clamp Tonnage: | 1180 | Toggle Stroke: | 340 |
| Space Between Tie Bar: | 370*370 | Machine Dimension: | 4.2*1.25*1.8m |
| High Light: | pvc pipe fitting injection molding machine,servo motor injection molding machine,hydraulic plastic injection moulding machine |
||
Product Description
118ton servo injection molding machine
CHARACTERISTICS
This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
| SPECIFICATION | HJF118 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 35 | 38 | 40 |
| Screw L/D Ration | L/D | 23.9 | 22 | 20.9 |
| Shot Size(Theoretical) | cm3 | 154 | 181 | 201 |
| Injection Weight(PS) | g | 141 | 165 | 183 |
| Injection Rate | g/s | 80 | 95 | 105 |
| Injection Pressure | MPa | 219 | 186 | 167 |
| Screw Speed | rpm | 0~220 | ||
| Clamping Force | KN | 1180 | ||
| Opening stroke | mm | 340 | ||
| Space Between Tie Bars | mm | 370*370 | ||
| Max.Mold Height | mm | 400 | ||
| Min.Mold Height | mm | 150 | ||
| Ejector Stroke | mm | 100 | ||
| Ejector Tonnage | KN | 33 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 11 | ||
| Heater power | KW | 6.5 | ||
| Machine Dimension(L*W*H) | M | 4.2*1.25*1.8 | ||
| Machine weight | T | 3.5 | ||
| Oil Tank Capacity | L | 210 | ||
Haijiang Machinery Main configuration
Standard machinery
| PLC | PORCHESON (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | LS (KOREA) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
