Horizontal Standard Auto Injection Molding Machine 530 Ton Servo Plastic Injection

China Horizontal Standard Auto Injection Molding Machine 530 Ton Servo Plastic Injection supplier

Large Image :  Horizontal Standard Auto Injection Molding Machine 530 Ton Servo Plastic Injection

Product Details:

Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF530

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Injection Weight: 1560~2614 Injection Rate: 386~625
Clamp Tonnage: 5300 Toggle Stroke: 770
Space Between Tie Bar: 820*800 Machine Dimension: 8.4*1.92*2.76m

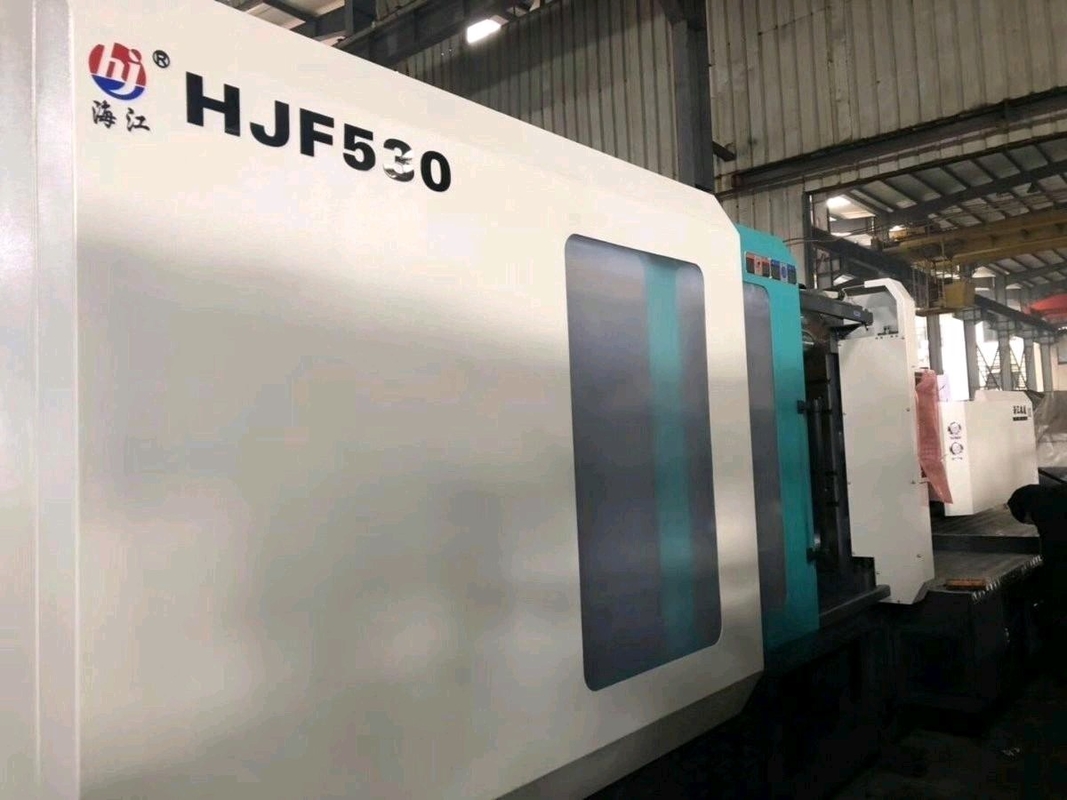

                                               HJF-530 servo  injection molding machine

Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

Features of injection molding machine:
1.Equiped with servo motor ,
2.Closed loop control for pressure and flow .
3.Low noise,
4.High precision
5.Energy saving .

Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.


SPECIFICATION HJF-530
  A B C

D
Speeial fruit basket

Screw diameter mm 75 80 85 100
Screw L/D Ratio L/D 22.7 21 20 17.5
Shot size(theoretical) cm³ 1727 1965 2218 2904
Injection weight(PS) g 1560 1788 2018 2614
Injection pressure Mpa 191 168 148 115
Injection rate g/s 386 442 499 625
Screw Speed rpm 130
Clamp tonnage KN 5300
Opening stroke mm 770
Space between the tie bars mm 820*800
Max.Mold Height mm 810
Min.Mold Height mm 330
Ejector stroke mm 240
Ejector tonnage KN 150
Max.pump pressure Mpa 16
Pump motor power KW 45
Heater power KW 31.4
Machine dimension(L*W*H) M 8.4*1.92*2.76
Machine weight T 20
Oil tank capacity L 900


Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)
