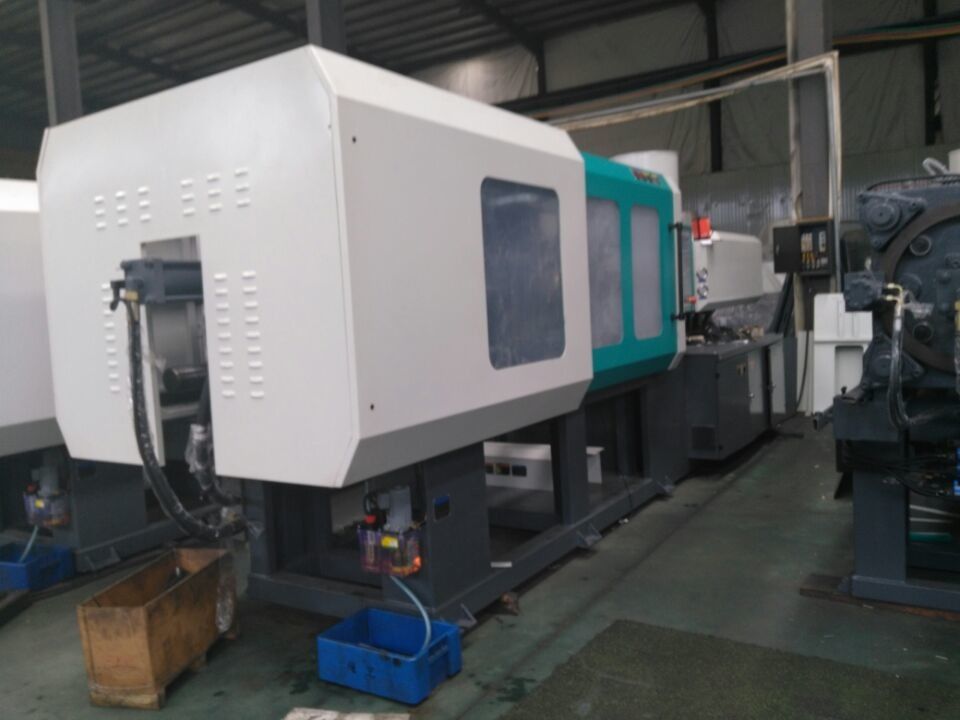

    molding maker

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF290

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Export standard
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 20sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 642~648 Injection Rate: 202~210
    Clamp Tonnage: 2900 Toggle Stroke: 585
    Space Between Tie Bar: 600*600 Machine Dimension: 6.0*1.6*2.1m
    High Light:

    pvc pipe fitting injection molding machine

    ,

    servo motor injection molding machine

    ,

    hydraulic plastic injection moulding machine

    Product Description

    molding maker

                                    HJF140 ton servo injection molding machine



    Specifications
    Injection molding machine
    1.Big tie bar space and shot weight capacity
    2.Most famous component parts
    3.Perfect after-service



    FEATURES
    - A variety of text can be switched.
    - Manual, semi-automatic and fully automatic mode.
    - Automatic movement monitoring with alarm and fault diagnosis.
    - Function of slope setting can set the start and stop of movements, so as ensure the smooth movement



    Adjustment Unit
    Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
    Clamping Unit
    The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
    Hydraulic Unit
    The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
    Injection Unit
    Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
    Specific screw and barrel designs are available for processing different material requirements.



    SPECIFICATION HJF140
    Screw Type A B C
    Screw Diameter Mm 55 60 65
    Screw L/D Ration L/D 23.1 21 19.3
    Shot Size(Theoretical) cm3 712 847 994.9
    Injection Weight(PS) g 648 779.9 905
    Injection Rate g/s 210 240 270
    Injection Pressure MPa 205 168 143
    Screw Speed rpm 0~180
    Clamping Force KN 2900
    Opening stroke mm 585
    Space Between Tie Bars mm 600*600
    Max.Mold Height mm 600
    Min.Mold Height mm 220
    Ejector Stroke mm 150
    Ejector Tonnage KN 75
    Max.Pump Pressure MPa 16
    Pump Motor Power KW 30
    Heater power KW 15
    Machine Dimension(L*W*H) M 6.0*1.6*2.1
    Machine weight T 8.5
    Oil Tank Capacity L 570





    Haijiang Machinery Main configuration

    Standard machinery

    PLC PORCHESON (TAIWAN)
    Vane Pump Albert (USA)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Proportional Valve HNC (TAIWAN)
    Electric Motor Qianlima (CHINA )
    Contactor LS (KOREA)
    Plasticizing Oil Motor STF(CHINA)
    Air Breaker LS (KOREA)
    Thermal Overload Relay LS (KOREA)
    Limit Switches Omoron (JAPAN )
    Liner Position Sensors (Electric Ruler) Minor (China)
    Lubrication Pump ChaoRun(China)

    Servo machinery

    PLC PORCHESON (TAIWAN)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Air Breaker LS (KOREA)
    SSR(solid state relay) Fotek(TAIWAN)
    Plasticizing Oil Motor STF(China)
    Limit Switches Omoron (JAPAN )
    Gear Pump SUMITOMO (JAPAN)
    Servo Driver DELTA (TAIWAN)
    Servo Sensor ASHCROFT(GERMAN)
    Servo Motor Albert(USA)/Phase(ITALY)
