    530t Servo 800kn 90g Auto Injection Molding Machine

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF530

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Export standard
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 20sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 1560~2614 Injection Rate: 386~625
    Clamp Tonnage: 5300 Toggle Stroke: 770
    Space Between Tie Bar: 820*800 Machine Dimension: 8.4*1.92*2.76m
    High Light:

    90g Auto Injection Molding Machine

    ,

    800kn Auto Injection Molding Machine

    Product Description

    530t Servo 800kn 90g Auto Injection Molding Machine

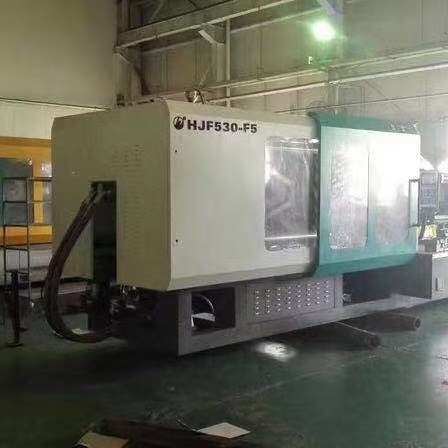

                                                   HJF-530 servo  injection molding machine



    Introduction:

    1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .Low noise,high precision and energy saving .

    We design,manuafcture and supply our own brand of injection molding machine  with clamping force ranged from 800kn to 30000kn, injection weight from 90g to 40000g, and can provide custom-built machine.



    2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC




     Plastic parts injection machine features:
    → bigger space between tie-bars
    → central-clamping structure
    → famous components
    → energy saving with servo motor
    → low noise, fast respons
    → high precision, Stable and super long life
    → T-Slot Platen
    → abundant Spare Parts
    → better price



    Electronically Controlled Unit

    1. CPU controller and display are independent and reliable.

    2. A larger color LCD screen enhances clear display and support multi-language compatibility.

    3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

    4. A screen saver function extends the LCD life.

    5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

    6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

    7. Closed loop PID barrel temperature control.

    8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.



    SPECIFICATION HJF530
    Screw Type A B C

    D

    fruit basket

    Screw Diameter Mm 75 80 85 100
    Screw L/D Ration L/D 22.7 21 20 17.5
    Shot Size(Theoretical) cm3 1727 1965 2218 2904
    Injection Weight(PS) g 1560 1788 2018 2614
    Injection Rate g/s 386 442 499 625
    Injection Pressure MPa 191 168 148 115
    Screw Speed rpm 130
    Clamping Force KN 5300
    Opening stroke Mm 820
    Space Between Tie Bars mm 820*820
    Max.Mold Height mm 810
    Min.Mold Height mm 330
    Ejector Stroke mm 240
    Ejector Tonnage KN 150
    Max.Pump Pressure MPa 16
    Pump Motor Power KW 45
    Heater power KW 31.4
    Machine Dimension(L*W*H) M 8.4*1.92*2.76
    Machine weight T 20
    Oil Tank Capacity L 900





    Haijiang Machinery Main configuration

    Standard machinery

    PLC TECHMATION (TAIWAN)
    Vane Pump Albert (USA)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Proportional Valve HNC (TAIWAN)
    Electric Motor Qianlima (CHINA )
    Contactor Schneider(France)
    Plasticizing Oil Motor STF(CHINA)
    Air Breaker LS (KOREA)
    Thermal Overload Relay LS (KOREA)/Schneider(France)
    Limit Switches Omoron (JAPAN )
    Liner Position Sensors (Electric Ruler) Minor (China)
    Lubrication Pump ChaoRun(China)

    Servo machinery

    PLC PORCHESON (TAIWAN)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Air Breaker LS (KOREA)
    SSR(solid state relay) Fotek(TAIWAN)
    Plasticizing Oil Motor STF(China)
    Limit Switches Omoron (JAPAN )
    Gear Pump SUMITOMO (JAPAN)
    Servo Driver DELTA (TAIWAN)
    Servo Sensor ASHCROFT(GERMAN)
    Servo Motor Albert(USA)/Phase(ITALY)

    SPARE PARTS( FOR FREE)

    1. Mold clamping with bolts: 8PCS, 2. Nozzles: 1PCS,
    3. Toolbox: 1SET, 4. Heating Ring: 2PCS,
    5. Lubrication Oil: 1 Bucket 6. Limit Switch: 2PCS,
    7. Hexagon Wrench: 1SET, 8. Thermocouple: 2PCS
    9. Seal Ring: 2PCS, 10. Machine shockproof pads: 6PCS,
    11. Vise: 1PCS, 12. Power socket for auxiliary machines: 2PCS,
    13. Wrench: 1PCS, 14. Screwdriver: 2PCS,
