    290 Ton Injection 180rpm Plastic Mould Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: Taihong
    Certification: ISO9001
    Model Number: HJF290

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD$25,200/set
    Packaging Details: Export standard
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 20sets/month
    Get Best Price Contact Now

    Detail Information

    Injection Weight: 648~905 Injection Rate: 210~270
    Clamp Tonnage: 2900 Toggle Stroke: 585
    Space Between Tie Bar: 600*600 Machine Dimension: 6.0*1.6*2.1m
    High Light:

    180rpm plastic mould making machine

    ,

    2900kn Plastic Mould Making Machine

    Product Description

    290 Ton Injection 180rpm Plastic Mould Making Machine

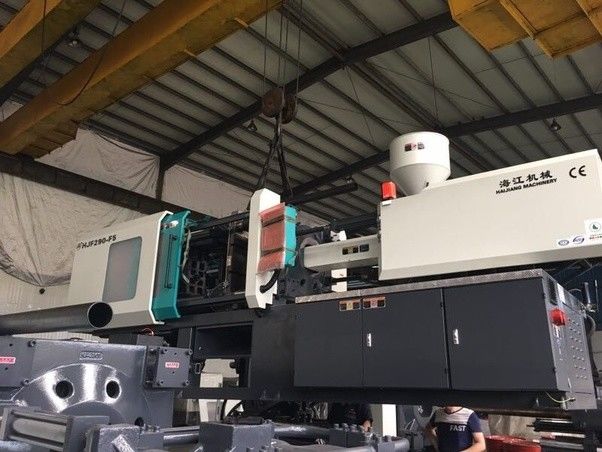

                                                    HJF290 Injection Molding Machine





    HAIJIANG plastic injection machine features:
    → bigger space between tie-bars
    → central-clamping structure
    → famous components
    → energy saving with servo motor
    → low noise, fast respons
    → high precision, Stable and super long life
    → T-Slot Platen
    → abundant Spare Parts
    → better price



    CONTROL SYSTEM

    All digital control system uses dedicated controller, multiple CPU processing division,
    a multi-functional automatic fault detection, alarm system, certificates 99 mold of
    processing procedures, with remote control interface. System is of high stability and
    responsiveness. System uses color LCD, man made interface for easy operation an



    Electronically Controlled Unit
    1.CPU controller and display are independent and reliable.
    2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
    3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
    4.A screen saver function extends the LCD life.
    5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
    6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
    7.Closed Loop PID barrel temperature control.

    8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.





    SPECIFICATION HJF290
    Screw Type A B C
    Screw Diameter Mm 55 60 65
    Screw L/D Ration L/D 23.1 21 19.3
    Shot Size(Theoretical) cm3 712 847 994.9
    Injection Weight(PS) g 648 779.9 905
    Injection Rate g/s 210 240 270
    Injection Pressure MPa 205 168 143
    Screw Speed rpm 0~180
    Clamping Force KN 2900
    Opening stroke Mm 585
    Space Between Tie Bars mm 600*600
    Max.Mold Height mm 600
    Min.Mold Height mm 220
    Ejector Stroke mm 150
    Ejector Tonnage KN 75
    Max.Pump Pressure MPa 16
    Pump Motor Power KW 30
    Heater power KW 15
    Machine Dimension(L*W*H) M 6.0*1.6*2.1
    Machine weight T 8.5
    Oil Tank Capacity L 570



    Haijiang Machinery Main configuration



    Standard machinery

    PLC PORCHESON (TAIWAN)
    Vane Pump Albert (USA)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Proportional Valve HNC (TAIWAN)
    Electric Motor Qianlima (CHINA )
    Contactor LS (KOREA)
    Plasticizing Oil Motor STF(CHINA)
    Air Breaker LS (KOREA)
    Thermal Overload Relay LS (KOREA)
    Limit Switches Omoron (JAPAN )
    Liner Position Sensors (Electric Ruler) Minor (China)
    Lubrication Pump ChaoRun(China)



    Servo machinery

    PLC PORCHESON (TAIWAN)
    Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
    Air Breaker LS (KOREA)
    SSR(solid state relay) Fotek(TAIWAN)
    Plasticizing Oil Motor STF(China)
    Limit Switches Omoron (JAPAN )
    Gear Pump SUMITOMO (JAPAN)
    Servo Driver DELTA (TAIWAN)
    Servo Sensor ASHCROFT(GERMAN)
    Servo Motor Albert(USA)/Phase(ITALY)
