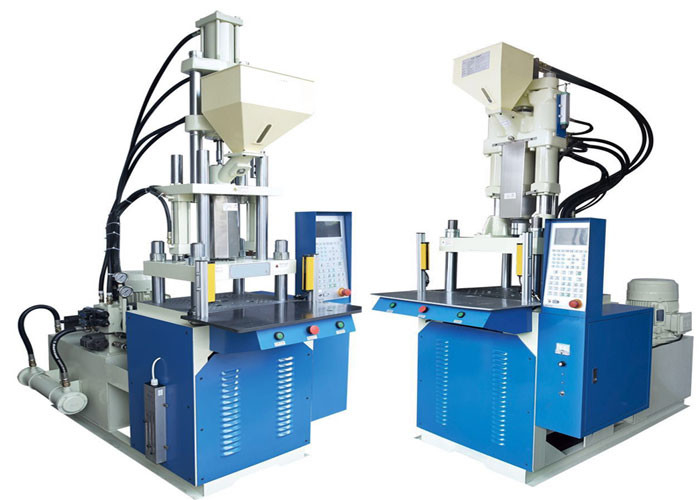

    Vertical Benchtop Plastic Injection Molding Machine

    Product Details:

    Place of Origin: China
    Brand Name: Haijia
    Certification: ISO9001 CE
    Model Number: HJV200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD2000
    Packaging Details: Export Standard packing
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets
    Get Best Price Contact Now

    Detail Information

    Machine Type: Vertical Shot Weight: 49 Grams
    Open Stroke: 130 Mm Hopper Size: 15kgs
    Mold Platen Size: 430 Mm*290 Mm Machine Weight: 1.1 Tons
    High Light:

    vertical plastic injection molding machine

    ,

    benchtop plastic injection molding machine

    ,

    benchtop injection molding machine

    Product Description

    Vertical Benchtop Plastic Injection Molding Machine

    1. Vertical mold opening, vertical injection, suitable for insert molding

    2. Nitrided steel screw, material tube, high torque hydraulic motor drive, multi-stage injection pressure, good plasticizing performance.

    3. Direct pressure mother-mold lock cylinder design, rapid mold clamping, low-pressure safety mold clamping, automatic mold closing, multiple pressure control, high safety and improved mold life.

    4. Electrical protection device, no mistakes, maintenance operator safety.

    5. Automatic fault display, maintenance is quick and easy.

    6. Electronic control and hydraulic use brand-name parts, quiet, precise and durable.

    7. Multi-stage temperature control, multi-stage injection pressure, rate of fire, back pressure stepless adjustment, suitable for molding of precision plastic parts.

    8. Optional servo energy-saving motor.

    9. This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.

    10 Two column and four column (option)

    Model VL-150
    INJECTION UNIT UNIT A B
    Screw Diameter mm 22 25
    Injection Pressure kgf/cm2 1715 1098
    Injection Volume(Theoratical) cm3 38 49
    Injection Weight g 34 44
    oz 1.2 1.6
    Injection Rate cm3/sec 20 30
    Screw Stroke mm 100
    Temperature Section - 3
    Hopper Capacity Liter 15
    CLAMPING UNIT
    Clamping Force tons 15
    Platen Size mm 430*290
    Space between Tie Bars mm 320*180
    Min. Mould Height mm 80/140
    Opening Stroke mm 180
    Max. Open Daylight mm 260/320
    Ejector Force tons 1.7
    Ejector Stroke mm 55
    OTHERS
    Max.hydraulic pressure kg/cm2 140
    Tank Volume Liter 80
    Pump Motor Power kw 4(4)
    Heater Power kw 2
    Total Power kw 6
    Machine Weight tons 0.75
    Machine Dimension m 1.8*0.9*2.4
