    PE Small 20 Gram Desktop Injection Molding Machine

    Product Details:

    Place of Origin: China
    Brand Name: HAIJIA
    Certification: CE,ISO9001
    Model Number: HaijiangMINI

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD5800
    Packaging Details: wooden box
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Get Best Price Contact Now

    Detail Information

    Machine Type: Micro Desktop Injection Machine Method: All Electric
    Shot Weight: 20 Grams Voltage: Single Phase Power
    Machine Weight: 100kgs Nozzle Size: 2mm
    High Light:

    20 gram desktop injection molding machine

    ,

    Pe desktop injection molding machine

    ,

    20g small injection molding machine

    Product Description

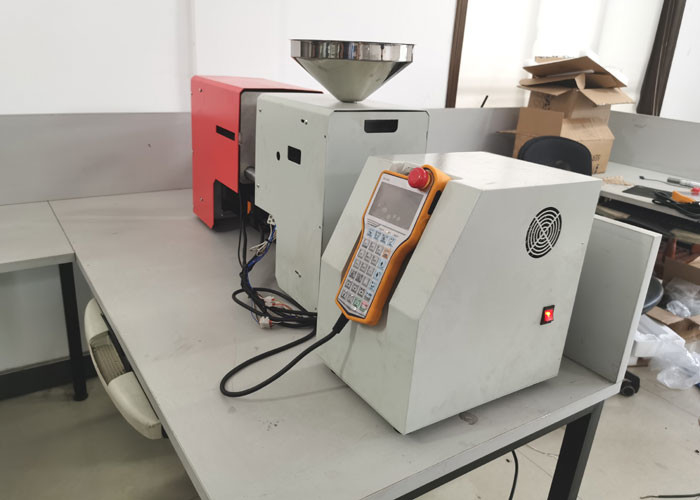

    PE Small 20 Gram Desktop Injection Molding Machine



    Small mini desktop plastic injection molding machine shot weight only 20 grams



    Mini

    It covers an area of about 1square meters,and can build mini injection workshop, saving investment of

    workshop and mold.

    >Machine dimension:700mm*340mm*180mm;

    >Net weight:70kg.



    High efficiency: 3.5s shaping cycle

    Traditional hydraulic press:

    Shot speed: 160~200mm/s

    Molding cycle :7~10 /s



    HaijiangMini:

    Max shot speed: 500mm/s

    Molding cycle 3.5 /s



    Energy saving(0.75KW/h)

    Traditional hydraulic press 15KW/H

    HaijiangMini automatic press 0.75KW/H

    Servo energy saving injection press is equipped with high performance servo electric motor driving control system.

    Output power of servo motor varies as loading changes so more energy consuming is not existing. During keeping

    pressure state, motor rotating decrease with low energy consuming. During cooling state, motor is nearly not working.

    The shot accuracy is improved, at the same time electricity, water saved.



    SPECIFICATION HJKMINI-8T
    VOLTAGE SUPPLY 220V
    POWER COMSUMPTION 1 KW
    NOZZLE SIZE 3mm
    SCREW DIAMETER 16-26mm
    COOLING METHOD Water cooling(or 220V mold temperature controller)
    MOLD INSTALLATION SIZE 200*130*150(L*W*H)
    PLASTIC RAW MATERIAL PP,PE,PA6,PS,PEI,PMMA,PVC,ABS etc
    PRODUCT WEIGHT 20g
    MACHINE DIMENSIONS 900*210*350(L*W*H)
    MACHINE WEIGHT 100KG
    CLAMPING FORCE 10T
    MOLD OPENING DISTANCE 70mm
    EJECTION DISTANCE 1-30mm
    TEMPERATURE RANGE 0-500℃
    MONITOR TOUCH SCREEN
    CONTROL SYSTEM PLC
    TRANSMISSION CHAIN (or Timing belt pulley)
    SPACE BETWEEN TIE-BARS 130mm*130mm
    SHELL OPTIONAL
    AUXILIARY MACHINES(optional) Auto loader,hopper dryer,mold temperature controller

    desktop injection molding machine

    Any questions, welcome to contact us, we ill be always help you and support you.
    • May I know how soon I can get the machine after I transfer the deposit?
      Re:Usually, if the quantity is less than 5 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
    • How long the product warranty period?
      Re:The product warranty period is 12 months.
    • How long have you engaged in this industry?
      Re:We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
    • What kinds of Processing equipment you have?
      Re:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
