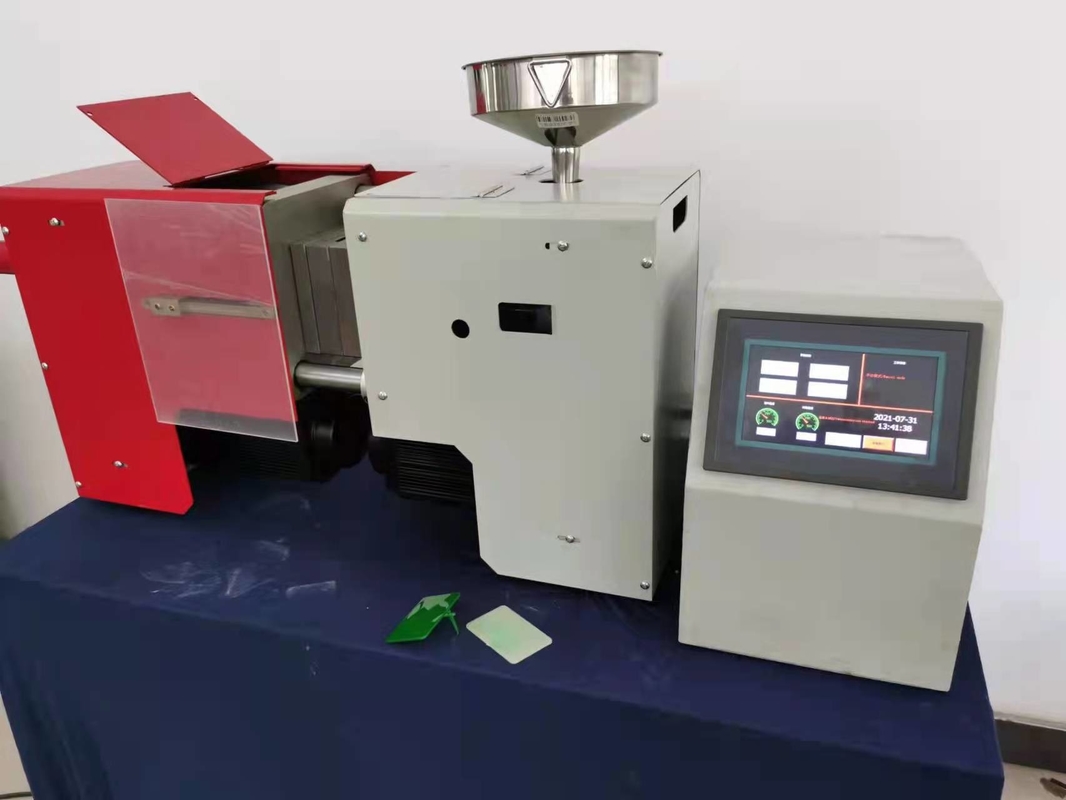

Fully Auto Injection Molding Machine Electrical Mini Desktop
Product Details:
| Place of Origin: | Zhejiang,ningbo |
| Brand Name: | Haijiang |
| Certification: | CE |
| Model Number: | Haijiang-mini-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 4600$ a set |
| Packaging Details: | wooden packing |
| Delivery Time: | 25days |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 5 sets/ 45 days |
|
Detail Information |
|||
| Color: | Customized | Working Power: | AC220V |
|---|---|---|---|
| Motor Power: | 1.2 Kw | Clamping Force: | 8 Ton |
| Injection Pressure: | 60-120 Mpa | Type Of Cooling: | Water Cooling |
| High Light: | Water Cooling Auto Injection Molding Machine,Mini Auto Injection Molding Machine,Mini Desktop Injection Molding Machine |
||
Product Description
Fully Electrical Energy-Saving Sample Making Mini Desktop Injecion Molding Machine
| Haijiang MINI injection molding machine parameter: | |
| Specification | |
| Working Power | AC220V |
| Motor power | 1.2 kw |
| Clamping Force | 8 ton |
| Injection pressure | 60-120 Mpa |
| Nozzle diameter | 2mm |
| Max injection capacity | 20g |
| Heating coil voltage | DC36V |
| Heating power | 300W |
| Temperature range | 20-420C |
| Type of cooling | water cooling |
| Clamping precision | 0.005mm |
| Motor speed | 0-1200 rpm |
| Mould max open stroke | 300mm |
| Max mould size | 145mm*145mm*200mm |
| Used material | PC,PS,PP,ABS,PE,TPU etc |
| Machine weight | 100kgs |
| Machine size(mm) | Machine: 800*180*300 Controller:276*180*256 |
This type of injection molding machine is suit for school experiment ,making some small samples and its a costly machine for starting your business .
